FocusEight
Frequency Range 65 Hz – 20 kHz
Nominal Directivity H x V: 70° x 10°
Maximum Peak SPL 139 dB
Components LMF 2 x 8in. Neodymium cone driver
Components MHF 1 x 1.5in. exit Neodymium compression Driver
Nominal Impedance LMF 8 Ω / MHF 16 Ω
Power Handling LMF 2.600 W / HF 440 W
Connections 2 x SpeakON™ NL4
Enclosure Construction 18 / 24 mm Ply Birch
Height 270 / Width 650 / Depth 570 mm
Weight 29 Kg
Supported Processing Armonia Pro Audio Suite
Formula F205
Frequency Range 80 Hz - 21 kHz
Nominal Directivity H x V : 90° x 10°
Maximum Peak SPL 139 dB
Components LMF 2 x 5in. Neodymium cone driver
Components HF 1 x 4in. Neodymium planar wave driver
Nominal Impedance 16 Ω (Internal passive network)
Power Handling (LMF / MHF) 200 / 800 W
Rigging: Formula™ rigging system
Connections 2 x SpeakON™ NL4
Enclosure Construction 18 / 24 mm Birch-ply
Height 174 / Width 468 / Depth 370 mm
Weight 12.5 Kg
Supported Processing: Armonia Pro Audio Suite
Formula F210
Frequency Range 65 Hz - 21 kHz
Nominal Directivity H x V : 90° x 10°
Maximum Peak SPL 144 dB
Components LF 2 x 10in. Neodymium cone driver / MF 2 x 5in. Neodymium cone driver / HF 2 x 4in. Neodymium planar wave driver
Nominal Impedance LF 2 x 8 Ω / MF 6 Ω / HF 8 Ω
Power Handling (Peak) LF 2 x 2.400 W / MF 640 W / HF 640 W
Rigging Formula™ rigging system
Connections 2x SpeakON™ NL8
Enclosure Construction 18 / 24 mm Birch-ply
Height 328 / Width 924 / Depth 466 mm
Weight 42 Kg
Supported Processing: Armonia Pro Audio SUite
Formula F212
Frequency Range 65 Hz - 21 kHz
Nominal Directivity H x V : 90° x 10°
Maximum Peak SPL (LF / MF / HF) 145 / 141 / 148 dB
Components LF 2 x 12in. Neodymium / MF 2 x 6.5in. Neodymium / HF 3 x 4in. Neodymium planar wave driver
Nominal Impedance LF 2 x 8 Ω / MF 8 Ω / HF 5.3 Ω
Power Handling (Peak) LF 2 x 4.000 W / MF 1.440 W / HF 960 W
Rigging Formula™ rigging system
Connections 2x SpeakON™ NL8
Enclosure Construction 18 / 24 mm Birch-ply
Height 450 / Width 1250 / Depth 625 mm
Weight 106 Kg
Supported Processing: Armonia Pro Audio Suite

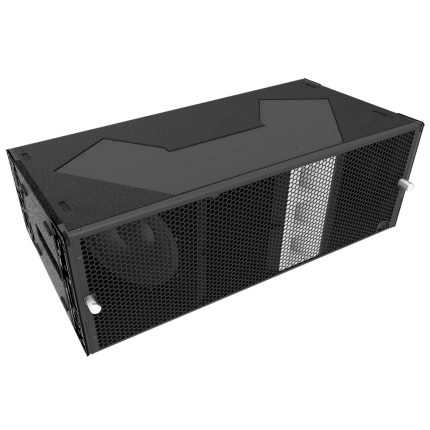

Formula F215
Frequency Range 50 Hz - 21 kHz
Nominal Directivity H x V : 90° x 10°
Maximum Peak SPL (LF / MF / HF) 145 / 141 / 148 dB
Components LF 2 x 15in. Ferrite cone driver / MF 2 x 6.5in. Neodymium / HF 3 x 4in. Neodymium planar wave driver
Nominal Impedance LF 2 x 8 Ω / MF 8 Ω / HF 5.3 Ω
Power Handling (Peak) LF 2 x 6.000 W / MF 1.440 W / HF 960 W
Rigging Formula™ rigging system
Connections 2x SpeakON™ NL8
Enclosure Construction 18 / 24 mm Birch-ply
Height 450 / Width 1250 / Depth 625 mm
Weight 106 Kg
Supported Processing : Armonia Pro Audio Suite
Formula Sub F221
Frequency Range 25 Hz - 150 Hz
Nominal Directivity H x V : Ominidirectional
Maximum Peak SPL LF 148 dB
Components LF 2 x 21in. Ferrite cone driver
Nominal Impedance LF 4 Ω
Power Handling (AES / Peak) LF 3.000 / 12.000 W
Connections 2 x SpeakON™ NL4
Enclosure Construction 18 / 24 mm Birch-ply
Height 620 / Width 1250 / Depth 1018 mm
Weight 125 Kg
Supported Processing : Armonia Pro Audio Suite
Gamma10
Frequency Range 65 Hz - 20 kHz (55 Hz @ -10dB)
Nominal Directivity H x V : 70° x 70° - Conical
Maximum Peak SPL 129 dB
Components LMF 1 x 10in. Neodymium / MHF 1 x 1in. Neodymium compression driver
Nominal Impedance 8 Ω
Power Handling (Peak) 1.200 W
Connections 3 x SpeakON™ NL4 (Two on the Rear side, one on the bottom side)
Enclosure Construction 15 mm Birch-ply
Height 550 / Width 330 / Depth 355 mm
Weight 14 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus
Gamma12
Frequency Range 55 Hz - 20 kHz (50 Hz @ -10dB)
Nominal Directivity H x V : 60° x 60° - Conical
Maximum Peak SPL 131 dB
Components LMF 1 x 12in. Neodymium / MHF 1 x 1.4in. Neodymium compression driver
Nominal Impedance 8 Ω
Power Handling (Peak) 1.800 W
Connections 3 x SpeakON™ NL4 (Two on the Rear side, one on the bottom side)
Enclosure Construction 15 mm Birch-ply
Height 600 / Width 363 / Depth 410 mm
Weight 25,5 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus
Gamma15
Frequency Range 50 Hz - 20 kHz (45 Hz @ -10dB)
Nominal Directivity H x V : 60° x 60° - Conical
Maximum Peak SPL 131 dB
Components LMF 1 x 15in. Neodymium / MHF 1 x 1.4in. Neodymium compression driver
Nominal Impedance 8 Ω
Power Handling (Peak) 1.800 W
Connections 3 x SpeakON™ NL4 (Two on the Rear side, one on the bottom side)
Enclosure Construction 15 mm Birch-ply
Height 700 / Width 450 / Depth 500 mm
Weight 33,5 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus
Gamma5
Frequency Range 85 Hz - 20 kHz (75 Hz @ -10dB)
Nominal Directivity H x V : 70° x 70° - Conical
Maximum Peak SPL 121 dB
Components LMF 1 x 5in. Neodymium / MHF 1 x 1in. Neodymium compression driver
Nominal Impedance 8 or 16 Ω
Power Handling (Peak) 600 W
Connections 3 x SpeakON™ NL4
Enclosure Construction 12 mm Birch-ply
Height 330 / Width 176 / Depth 207 mm
Weight 4.5 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus
Gamma6
Frequency Range 75 Hz - 20 kHz (65 Hz @ -10dB)
Nominal Directivity H x V : 70° x 70° - Conical
Maximum Peak SPL 122 dB
Components LMF 1 x 6.5in. Neodymium / MHF 1 x 1in. Neodymium
Nominal Impedance 8 or 16 Ω
Power Handling (Peak) 800 W
Connections 3 x SpeakON™ NL4 (Two on the Rear side, one on the bottom side)
Enclosure Construction 12 mm Birch-ply
Height 350 / Width 210 / Depth 250 mm
Weight 5 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus
Gamma8
Frequency Range 65 Hz - 20 kHz (60 Hz @ -10dB)
Nominal Directivity H x V : 70° x 70° - Conical
Maximum Peak SPL 127 dB
Components LMF 1 x 8in. Neodymium / MHF 1 x 1in. Neodymium compression driver
Nominal Impedance 8 Ω
Power Handling (Peak) 1000 W
Connections 3 x SpeakON™ NL4 (Two on the Rear side, one on the bottom side)
Enclosure Construction 12 mm Birch-ply
Height 400 / Width 250/ Depth 305 mm
Weight 8 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus
GammaS8
Frequency Range 45 Hz - 120 Hz (40 Hz @ -10dB)
Nominal Directivity: Omnidirectional or cardioid (paired)
Maximum Peak SPL LF 124 dB
Components LF 1 x 8in. Ferrite cone driver
Nominal Impedance LF 8 Ω
Power Handling (Peak) 1.400 W
Connections 2 x SpeakON™ NL4
Enclosure Construction 18mm Birch-ply
Height 246 / Width 600 / Depth 500 mm
Weight 20 Kg
Supported Processing : Armonia Pro Audio Suite

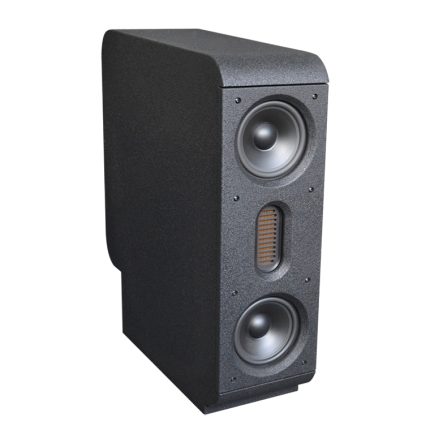

Loud Professional AirFive
Frequency Range 50 Hz - 32 kHz (45 Hz @ -6dB)
Nominal Directivity H x V : 70° x 30°
Maximum Peak SPL (LMF / MHF) 121 / 117 dB
Components LMF 2 x 5in. / MHF 1 x Neodymium Ribbon Tweeter
Nominal Impedance LMF 4 Ω / MHF 6 Ω
Power Handling (Peak) LF 1.000 W / HF 400 W
Amplifier Dual Channel Class D amplifier (2 x 500 W at 4 Ω - On board DSP)
Connections
2 x Neutrik™ XLR (IN / OUT), 1 x ETH + 1 x USB Network
1 x VDE (AC Mains IN) - ON / OFF Switcher
Enclosure Construction 18 / 24 mm Ply Birch
Finish Black Polyurea PCP (Polyurea Cabinet Protection) finish
Protection Grille N.A.
Height 575 / Width 180 / Depth 512 mm
Weight 15.5 Kg
Supported Processing : ALL DSP

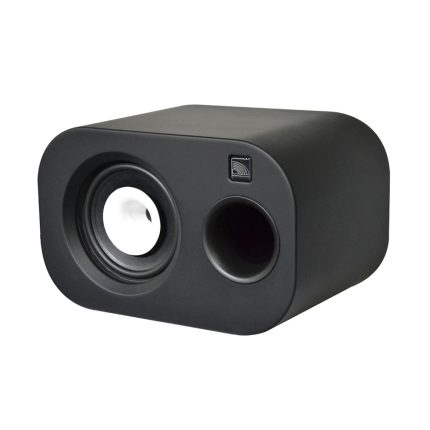

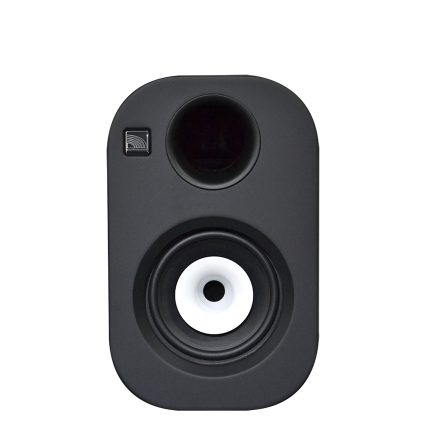

MicrHome
Frequency Range 75 Hz - 20 kHz (65 Hz @ -10 dB)
Nominal Directivity H x V : 70° x 70° - Conical
Maximum Peak SPL 123 dB
Components LMF 1 x 6.5in. Neodymium / MHF 1 x 1in. exit Neodymium compression driver
Nominal Impedance 8 Ω
Power Handling (Peak) 800 W
Connections 2 x Phoenix™ 4 Pole Connectors
Enclosure Construction 18 mm MDF Hydro
Finish Black or White Polyurethane Soft Touch finish
Height 220 / Width 350 / Depth 235 mm
Weight 8 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus
MicrHome Mini
Frequency Range 130 Hz - 20 kHz (110 Hz @ -10dB)
Nominal Directivity H x V : 120° x 120° - Conical
Maximum Peak SPL 114 dB
Components LMF 1 x 4in. Neodymium / MHF 1 x 1in. Neodymium soft dome tweeter
Nominal Impedance 8 Ω
Power Handling (Peak) 160 W
Connections 2 x Phoenix™ 4 Pole Connectors
Enclosure Construction 15 mm MDF Hydro
Finish Black or White Polyurethane Soft Touch finish
Protection Grille N.A.
Height 240 / Width 140 / Depth 235 mm
Weight 2.25 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus

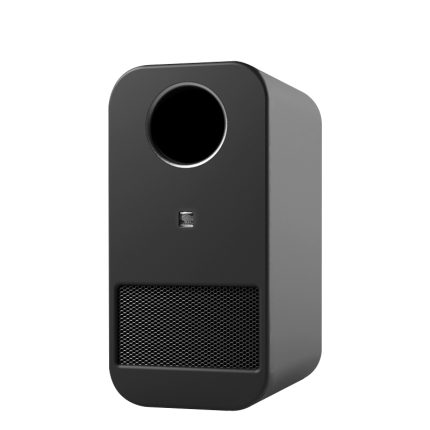

MicrHome Sub
Frequency Range 45 Hz - 200 Hz (35 @ -10 dB)
Nominal Directivity : Omnidirectional
Maximum Peak SPL LF 121 dB
Components LF 1 x 8in. Ferrite cone driver
Nominal Impedance LF 8 Ω
Power Handling (Peak) LF 1.400 W
Connections 2 x Phoenix™ 4 Pole Connectors
Enclosure Construction 18 MDF Hydro
Finish Black or White Polyurethane Soft Touch finish
Height 310 / Width 630 / Depth 450 mm
Weight 21 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus

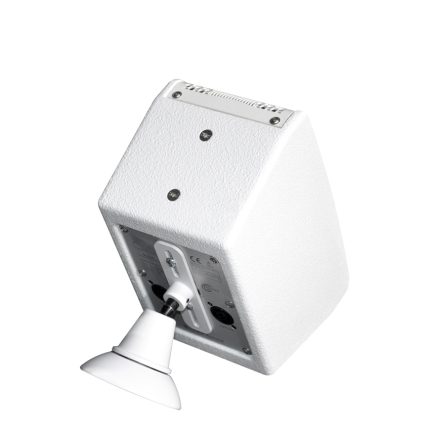

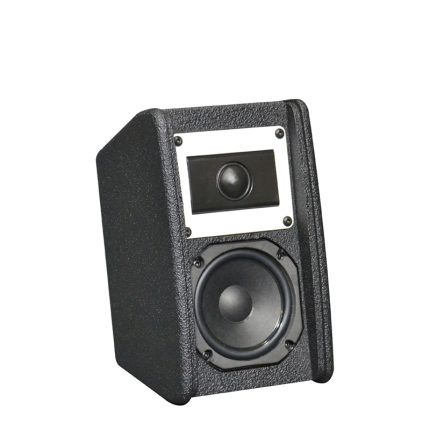

Nucleo
Frequency Range (+/-3 dB) 120 Hz - 20 kHz (100 Hz @ -10dB)
Nominal Directivity (-6 dB) H x V 120° x 120° - Conical
Maximum Peak SPL 114 dB
Components LMF 1 x 4in. Neodymium cone driver
Components MHF 1 x 1in. Neodymium soft dome tweeter
Nominal Impedance 8 Ω (Internal passive network)
Power Handling (AES / Peak) 40 / 160 W
Connections 2 x SpeakON™ NL4
Enclosure Construction 9 / 12 mm Birch-ply
Finish Black or White Polyurea PCP (Polyurea Cabinet Protection) finish
Protection Grille Powder coated 1.5mm Metal Rigid Grille
Acoustically Transparent Foam for discrete appearance
Height 220 /Width 140 / Depth 150 mm
Weight 2 kg
Supported Processing Armonia Pro Audio Suite
Nucleo Sub
Frequency Range 50 Hz - 120 Hz (45 Hz @ -10dB)
Nominal Directivity : Omnidirectional or cardioid (paired)
Maximum Peak SPL LF 121 dB
Components LF 1 x 8in. Ferrite cone driver
Nominal Impedance LF 8 Ω
Power Handling (Peak) LF 1.400 W
Connections 2 x SpeakON™ NL4
Enclosure Construction 18mm Birch-ply
Height 246 / Width 485 / Depth 300 mm
Weight 10.5 Kg
Supported processing : Armonia Pro Audio Suite
PoweRack V.1
AC Mains Connections 1 x 32 A three phases IN plug & 1 x 32 A LINK OUT socket
Analog Signals 2 x Neutrik™ XLR Inputs, 2 x XLR Outputs
Digital Signals 2 x Neutrik™ XLR AES/EBU Inputs,
2 x Neutrik™ XLR AES/EBU Outputs
Network Connections 2 x Neutrik Ethercon I/O, Remote control
Power Output Sections (A,B,C,D) 1 x NL8 SpeakON™ Main Speaker output connector
2 x NL4 SpeakON™ Slave Speaker output connectors,
referring to NL8 Main connector
Enclosure Constructions Sturdy vibrations free Flyghtcase with a built in anti - shock
system
Height 735 / Width 645 / Depth 738 mm
Weight 90 Kg
Quadra2
Frequency Range 170 Hz - 20 kHz (130 Hz @ -10 dB)
Nominal Directivity H x V : 90° x 90° - Conical
Maximum Peak SPL 104 dB
Components LMF - MHF 1 x 2in. Neodymium Full Range cone driver
Nominal Impedance 8 Ω
Power Handling (Peak) 100 W
Connections 1 x Phoenix™ 4 Pole Connector
Enclosure Construction 9 / 12 mm Birch-ply
Height 100 / Width 100 / Depth 100 mm
Weight 0.5 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus
Quadra4
Frequency Range 130 Hz - 18 kHz (110 Hz @ -10 dB)
Nominal Directivity H x V : 90° x 90° - Conical
Maximum Peak SPL 114 dB
Components LMF - MHF 1 x 4in. Neodymium Full Range cone driver
Nominal Impedance 8 Ω
Power Handling (Peak) 160 W
Connections 2 x Phoenix™ 4 Pole Connectors
Enclosure Construction 9 / 12 mm Birch-ply
Height 130 / Width 130 / Depth 130 mm
Weight 0.8 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus
Quadra5
Frequency Range 110 Hz - 22 kHz (90 Hz @ -10 dB)
Nominal Directivity H x V : 90° x 90° - Conical
Maximum Peak SPL 115 dB
Components LMF 1 x 5in. Neodymium / HF 1 x 0.7in. Neodymium Tweeter (Coaxial)
Nominal Impedance 8 Ω
Power Handling (Peak) 200 W
Connections 2 x Phoenix™ 4 Pole Connectors
Enclosure Construction 9 / 12 mm Birch-ply
Height 160 / Width 160 / Depth 160 mm
Weight 2 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus
Quadra6
Frequency Range 90 Hz - 22 kHz (75 Hz @ -10 dB)
Nominal Directivity H x V : 90° x 90° - Conical
Maximum Peak SPL 115 dB
Components LMF 1 x 6.5in. Neodymium / HF 1 x 0.7in. Neodymium Tweeter (Coaxial)
Nominal Impedance 8 Ω
Power Handling (Peak) 200 W
Connections 2 x Phoenix™ 4 Pole Connectors
Enclosure Construction 9 / 12 mm Birch-ply
Height 220 / Width 220 / Depth 220 mm
Weight 3.5 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus
QuadraS
Frequency Range 45 Hz - 110 Hz (40 Hz @ -10dB)
Nominal Directivity : Omnidirectional or cardioid (paired)
Maximum Peak SPL LF 124 dB
Components LF 1 x 8in. Ferrite cone driver
Nominal Impedance LF 8 Ω
Power Handling (Peak) LF 1.400 W
Connection 2 x Phoenix™ 4 Pole Connectors
Enclosure Construction 18 mm Birch-ply
Height 425 / Width 425 / Depth 425 mm
Weight 17.5 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus
Smart Sub1.8H
Frequency Range 45 Hz - 150 Hz
Nominal Directivity : Omnidirectional
Maximum Peak SPL LF 140 dB
Components LF 1 x 18in. Ferrite cone driver
Nominal Impedance LF 8 Ω
Power Handling (Peak) LF 6.000 W
Amplifier Dual Channel Class D amplifier (1 x 1500 W at 8 Ω pair of channels bridged - On board DSP)
Connections 2 x PowerCON™ (IN/Out) - 2 x Neutrik™ XLR (IN/Out)
Enclosure Construction 18 / 24 mm Ply Birch
Height 701 / Width 530 / Depth 769 mm
Weight 62 Kg
Supported Processing : Armonia Pro Audio Suite
Smart Sub2.8R
Frequency Range 32 Hz - 150 Hz
Nominal Directivity : Omnidirectional
Maximum Peak SPL LF 142 dB
Components LF 2 x 18in. Ferrite cone driver
Nominal Impedance LF 2 x 8 Ω
Power Handling (Peak) LF 2 x 6.000 W
Amplifier Quad Channel Class D amplifier (2 x 1500 W at 8 Ω pair of channels bridged - On board DSP)
Connections 2 x PowerCON™ (IN/Out) - 2 x Neutrik™ XLR (IN/Out)
Enclosure Construction 18 / 24 mm Ply Birch
Height 1182 / Width 585 / Depth 730 mm
Weight 62 Kg
Supported Processing : Armonia Pro Audio Suite
Smart1.0
Frequency Range 65 Hz - 20 kHz
Nominal Directivity H x V : 60° x 40° - Rotable
Maximum Peak SPL (LMF / MHF) 132 dB
Components LMF 1 x 10in. Ferrite cone driver / MHF 1 x 1in. exit Neodymium compression driver
Nominal Impedance LMF 8 Ω / MHF 8 Ω
Power Handling (Peak) LF 2.400 W / HF 200 W
Amplifier Dual Channel Class D amplifier (2 x 1500 W at 8 Ω - On board DSP)
Connections 2 x PowerCON™ (IN/Out) - 2 x Neutrik™ XLR (IN/Out)
Enclosure Construction 18 / 24 mm Ply Birch
Height 576 / Width 389 / Depth 350 mm
Weight 23.5 Kg
Supported Processing : Armonia Pro Audio Suite
Smart1.2
Frequency Range 60 Hz - 20 kHz
Nominal Directivity H x V : 90° x 60°
Maximum Peak SPL (LMF / MHF) 135 dB
Components LMF 1 x 12in. Neodymium / MHF 1 x 1.4in. exit Neodymium compression driver
Nominal Impedance LMF 8 Ω / MHF 8 Ω
Power Handling (Peak) LF 2.600 W / HF 440 W
Amplifier Dual Channel Class D amplifier (2 x 1.050 W at 8 Ω - On board DSP)
Connections 2 x PowerCON™ (IN/Out) - 2 x Neutrik™ XLR (IN/Out)
Enclosure Construction 18 / 24 mm Ply Birch
Height 680 / Width 430 / Depth 380 mm
Weight 26 Kg
Supported Processing : Armonia Pro Audio Suite
Smart1.5
Frequency Range 50 Hz - 20 kHz
Nominal Directivity H x V : 90° x 60°
Maximum Peak SPL (LMF / MHF) 136 dB
Components LMF 1 x 15in. / MHF 1 x 1.4in. exit Neodymium compression driver
Nominal Impedance LMF 8 Ω / MHF 8 Ω
Power Handling (Peak) LF 3.200 W / HF 440 W
Amplifier Quad Channel Class D amplifier (2 x 1.500 W at 8 Ω pair of channels bridged - On board DSP)
Connections 2 x PowerCON™ (IN/Out) - 2 x Neutrik™ XLR (IN/Out)
Enclosure Construction 18 / 24 mm Ply Birch
Height 785 / Width 490 / Depth 455 mm
Weight 39 Kg
Supported Processing : Armonia Pro Audio Suite
PHÒNG THU – STUDIO
ACCESSORIES
