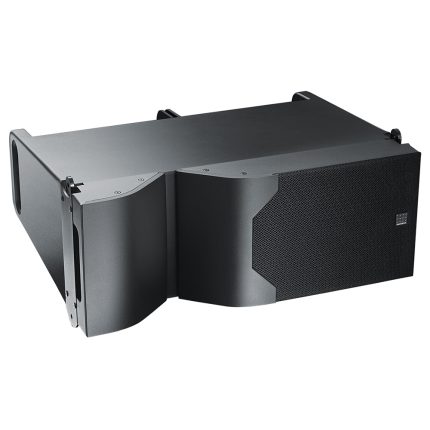

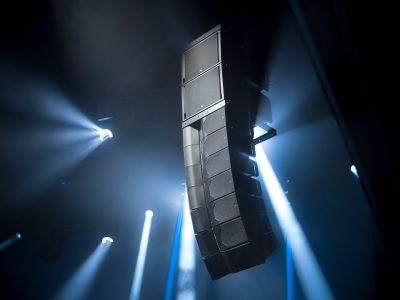

Amadeus DIVA M²
Number of ways 3
Operating frequency range (-6 dB) 65 Hz - 20000 Hz
Sensitivity LF 97 dB/ MHF 112 dB
Maximum SPL LF 130 dB/ MHF 142 dB
Horizontal coverage 100°/ Vertical coverage 10°
Nominal impedance LF 16 Ω/ MHF 16 Ω
Peak power handling LF 1200 W/ MHF 1000 W
Transducer (LF) 1 x 8" + (MF) 1 x 3.5" + (HF) 1 x 1.75"
Enclosure type Bass-Reflex
Crossover type Active (FIR)
230 x 589 x 459 mm/ Weight 21 kg
Amadeus Avignon A 470 Wide
Operating frequency range (-6 dB) 58 Hz - 20000 Hz
Number of ways 2
Maximum SPL LF 128 dB/ MHF 130 dB
Horizontal coverage 100°/ Vertical coverage 4°
Nominal impedance LF 4 Ω/ MHF 8 Ω
Peak power handling LF 1200 W + MHF 500 W
Transducer (LF) 4 x 6.5" + (HF) 4 x 8" planar ribbons
Enclosure type Passive Radiators (6 x 8")
Crossover type Active (FIR)
838 x 282 x 470 mm/ Weight 34 kg
Gamma5
Frequency Range 85 Hz - 20 kHz (75 Hz @ -10dB)
Nominal Directivity H x V : 70° x 70° - Conical
Maximum Peak SPL 121 dB
Components LMF 1 x 5in. Neodymium / MHF 1 x 1in. Neodymium compression driver
Nominal Impedance 8 or 16 Ω
Power Handling (Peak) 600 W
Connections 3 x SpeakON™ NL4
Enclosure Construction 12 mm Birch-ply
Height 330 / Width 176 / Depth 207 mm
Weight 4.5 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus
VH Micro Full Range
Frequency Range 120 Hz - 20 kHz
Nominal Directivity H x V : 60° x 60° - Conical
Maximum Peak SPL 131 dB
Components LMF 1 x 6.5in. Neodymium / HF 1 x 1in. exit Neodymium compression driver
Nominal Impedance 16 Ω
Power Handling (Peak) 800 W
Connections 2 x SpeakON™ NL4
Enclosure Construction 18 / 24 mm Birch-ply
Height 340 / Width 225 / Depth 195 mm
Weight 8 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus
Formula F205
Frequency Range 80 Hz - 21 kHz
Nominal Directivity H x V : 90° x 10°
Maximum Peak SPL 139 dB
Components LMF 2 x 5in. Neodymium cone driver
Components HF 1 x 4in. Neodymium planar wave driver
Nominal Impedance 16 Ω (Internal passive network)
Power Handling (LMF / MHF) 200 / 800 W
Rigging: Formula™ rigging system
Connections 2 x SpeakON™ NL4
Enclosure Construction 18 / 24 mm Birch-ply
Height 174 / Width 468 / Depth 370 mm
Weight 12.5 Kg
Supported Processing: Armonia Pro Audio Suite
Gamma8
Frequency Range 65 Hz - 20 kHz (60 Hz @ -10dB)
Nominal Directivity H x V : 70° x 70° - Conical
Maximum Peak SPL 127 dB
Components LMF 1 x 8in. Neodymium / MHF 1 x 1in. Neodymium compression driver
Nominal Impedance 8 Ω
Power Handling (Peak) 1000 W
Connections 3 x SpeakON™ NL4 (Two on the Rear side, one on the bottom side)
Enclosure Construction 12 mm Birch-ply
Height 400 / Width 250/ Depth 305 mm
Weight 8 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus

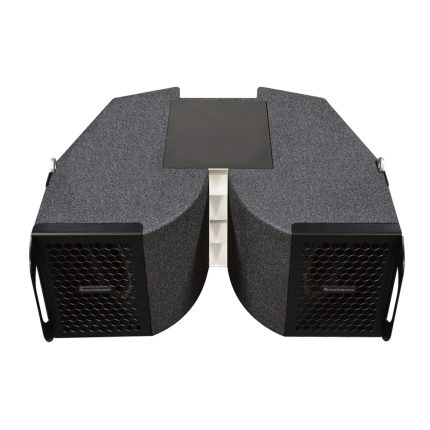

FocusEight
Frequency Range 65 Hz – 20 kHz
Nominal Directivity H x V: 70° x 10°
Maximum Peak SPL 139 dB
Components LMF 2 x 8in. Neodymium cone driver
Components MHF 1 x 1.5in. exit Neodymium compression Driver
Nominal Impedance LMF 8 Ω / MHF 16 Ω
Power Handling LMF 2.600 W / HF 440 W
Connections 2 x SpeakON™ NL4
Enclosure Construction 18 / 24 mm Ply Birch
Height 270 / Width 650 / Depth 570 mm
Weight 29 Kg
Supported Processing Armonia Pro Audio Suite
Formula F215
Frequency Range 50 Hz - 21 kHz
Nominal Directivity H x V : 90° x 10°
Maximum Peak SPL (LF / MF / HF) 145 / 141 / 148 dB
Components LF 2 x 15in. Ferrite cone driver / MF 2 x 6.5in. Neodymium / HF 3 x 4in. Neodymium planar wave driver
Nominal Impedance LF 2 x 8 Ω / MF 8 Ω / HF 5.3 Ω
Power Handling (Peak) LF 2 x 6.000 W / MF 1.440 W / HF 960 W
Rigging Formula™ rigging system
Connections 2x SpeakON™ NL8
Enclosure Construction 18 / 24 mm Birch-ply
Height 450 / Width 1250 / Depth 625 mm
Weight 106 Kg
Supported Processing : Armonia Pro Audio Suite
RCF GTS 29
HIGH-PERFORMANCE FLYABLE SUBWOOFER
144 dB max SPL
2 x 19” neo woofers, 4” v.c.
3 side handles
Designed to operate with XPS 16K amplifier (4 modules per amp unit)
Durable and lightweight cabinet construction, polyurea coating
Heavy duty, powder coated, custom perforated front grille
2 x 2 P-COM 8 pole bayonet connectors (Gold coated, CA-COM compatible, IP 68)
RCF GTX 12
THREE-WAY LINE ARRAY MODULE
148 dB max SPL
4 x 6” neo midrange drivers, 2” v.c.
2 x 3” titanium dome, neo compression drivers
2 x 12” neo woofers, 3.5” v.c.
90° x 10° 4PATH waveguide
Designed to operate with XPS 16K amplifier (4 XPS channels powering up to 3 modules)
Durable and lightweight cabinet construction, polyurea coating
Heavy duty, powder coated, custom perforated front grille
2 x P-COM 8 pole bayonet connectors (Gold coated, CA-COM compatible, IP 68)
RCF GTX 10
TWO-WAY LINE ARRAY MODULE
143 dB max SPL
1 x 4” titanium dome, neo compression driver
2 x 10” neo woofers, 3” v.c.
110° x 15° 4PATH waveguide
Designed to operate with XPS 16K amplifier (up to 6 modules per amp unit)
Durable and lightweight cabinet construction, polyurea coating
Heavy duty, powder coated, custom perforated front grille
3 x P-COM 8 pole bayonet connectors (Gold coated, CA-COM compatible, IP 68)
RCF NXL 44-A MK2
Up to 135 dB Sound Pressure Level
2100W Class-D Amplifier
100° x 25° Constant Directivity Coverage Angle
3" Titanium Neodymium Compression Driver
3 x 10" High Power Neodymium Woofers
45-20000 Hz linear Frequency Response
Bass Motion Control and FiRPHASE processing
8 x M8 Rigging Points and 8 x Quick Lock
IP Rated Powercon TRUE1 TOP IN/OUT
FINE 600LB BSW IP
FINE 600LB BSW IP is a multi - functional LED moving - head computer lighting fixture launched by Color Kinetics. It is specially designed for indoor and outdoor performances, integrating beam, color - washing, and pattern functions. With a beam angle as small as 3.3degrees, it can project sharp and highly penetrative aerial beam effects, and the clear pattern is a major highlight of the product. Equipped with an IP66 protection rating and a metal casing, it ensures stable operation around the clock. Its innovative design allows for the convenient replacement of gobos, just like indoor lighting fixtures. It has a built - in second - generation color standard, providing accurate color representation. The NFC function enables the setting of the lighting fixture without power supply, improving operational efficiency. The lighting fixture is lightweight and portable, suitable for rapid deployment. It is applicable to a variety of scenarios such as cultural and tourism projects, outdoor performances, sports events, TV stations, theaters, concerts, and auto shows, making it an ideal choice for lighting designers.
FINE 1700LC BSWF
FINE 1700LC BSWF - Full-spectrum LED moving head computer light dedicated to the high-end performance market. Built-in 1500W RGBLA LED customized light engine and independently developed color management system to ensure color consistency, purity and broad color gamut. The heat dissipation system using patented technology can maintain full power use at normal temperature without reducing power, and the noise is less than 45 dB. Equipped with 1 rotating pattern wheels, 1 dynamic effect wheel, and a full framing system that can rotate ±90°, the cutting edge is clear and distortion-free. It is small in size and light in weight, and is suitable for high-end places with high light quality requirements such as TV stations, theaters, and concerts.

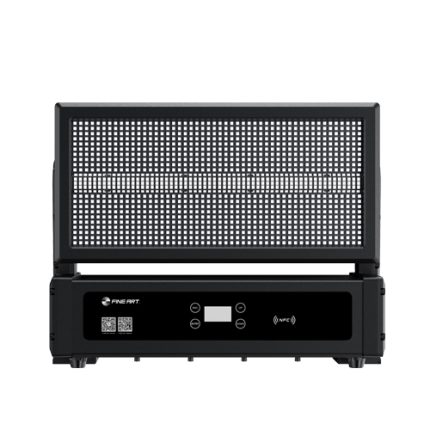

FINE 800C STROBE PRO IP
FINE 800C STROBE PRO IP is a multifunctional waterproof strip light. The product adopts a pixel array composed of 780pcs RGB LEDs, which provides background light that looks very similar to high-definition LED walls in appearance; The whole lights is composed of 15 grid sections, each of which can be independently controlled by RGBW and has pixel function; By introducing advanced electronic atomizer technology, the same effect as an atomizer can be easily achieved. Built in dual port switch, can be used for video projection, convenient for engineering wiring, and reduces DMX512 resources and operating costs; The lighting and dyeing are evenly distributed, and the lamp body is made of high-efficiency aluminum alloy for heat dissipation, ensuring that long-term use will not reduce power; IP65 protection level design, meeting the needs of outdoor all-weather use; Suitable for outdoor concerts, entertainment, rentals, and various live event.

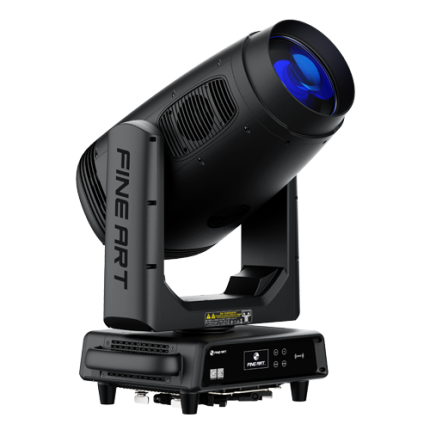

FINE 1700L WASH PERF IP
FINE 1700L WASH PERF IP is a dyeing and cutting computer moving head light equipped with the latest high-efficiency light engine, Ra≥90, and the light source life is designed to be 20,000 hours; the luminous flux output of the whole machine can reach more than 50,000lm; good heat dissipation design supplemented by intelligent Fan control technology, the lower the ambient temperature, the lower the noise; the cooling system with patented technology, continuous full power use at room temperature without power reduction. The built-in second-generation color standard ensures that the color of the whole lamp is consistent with that of gas discharge light source lamps. 2 color wheels with 6 colors + white light respectively, CMY stepless color mixing, CTO color temperature linear adjustment, a full-range cutting system that can rotate ±90 degrees. The product is suitable for high-end places such as TV stations, theaters, concerts, large-scale evening parties, electronic music festivals, auto shows, etc., especially suitable for 4K high-definition studios and places with high noise requirements such as theaters and concert halls.
FINE 1700LB BSWF IP
FINE 1700LB BSWF IP - an all-weather LED moving head computer light launched by CHAIYI for high-end indoor and outdoor performance markets. It stands out with its multifunctional design that integrates beam, dyeing, patterning and framing. It has excellent range, with an efficient range of up to 100m, while providing excellent light quality; using a patented heat dissipation system, it can maintain full power use at room temperature without reducing power, and is incredibly low Noise is less than 45dB. Built-in second-generation color standard ensures color consistency, purity and wide color gamut. Powerful in function, it is equipped with 1 color wheel with a total of 6 color chips, 2 rotating pattern wheels, 1 dynamic effect wheel, and a full framing system that can rotate ±90°. The framing image is clear and distortion-free. IP66 protection grade design, the entire lamp adopts aluminum alloy die-cast shell to ensure stable use in all weather outdoors. Lightweight and portable, it is suitable for cultural tourism, outdoor live performances, large stadiums, TV stations, theaters, stages, concerts, large parties, car shows and other places.
FINE 600LH BSWF IP
FINE 600LH BSWF IP is an LED moving head computer light specially designed by Color Kinetics for the indoor and outdoor performance markets. It integrates beam, wash, spot, and framing functions all in one. It features a unique optical design. Whether it's a small - angle projection or a large - scale illumination, the patterns always remain clear and sharp. With an IP66 protection rating and a sturdy die - cast aluminum alloy housing, it can withstand rain and wind, operate stably around the clock, and easily adapt to any performance environment. The innovative structural design makes replacing gobo plates as simple and convenient as with indoor lighting fixtures. The built - in second - generation color standard ensures accurate, saturated colors with excellent consistency, infusing every performance with a vivid soul. Even more impressively, it has a built - in NFC near - field communication function, allowing for lamp settings and information queries without power supply, thus improving operational efficiency. Its lightweight and portable body design facilitates transportation and installation, perfectly meeting the requirements for rapid deployment. From cultural and tourism performances to outdoor live shows, from sports events to TV station live broadcasts, and then to theater stages, concerts, and auto shows, the FINE 600LH BSWF IP, with its outstanding performance and versatility, has become the ideal choice for professional lighting designers.
