VH e-motion Bass215H
Frequency Range 60 Hz - 220 Hz
Nominal Directivity H x V : Ominidirectional
Maximum Peak SPL LF 151 dB
Components LF 2 x 15in. Ferrite cone driver
Nominal Impedance LF 4 Ω
Power Handling (Peak) LF 12.000 W
Rigging VH e-motion rigging™ system
Connections 2 x SpeakON™
Enclosure Construction 18 / 24 mm Birch-ply
Height 840 / Width 815 / Depth 830 mm
Weight 80 Kg
Supported Processing : Armonia Pro Audio Suite
VH e-motion F12H
Frequency Range 90 Hz - 20 kHz
Nominal Directivity H x V : 60° x 40° - Conical
Maximum Peak SPL (LMF / MHF) 143 / 136 dB
Components LMF 1 x 12in. Neodymium / MHF 1 x 1.4in. exit Neodymium compression driver
Nominal Impedance LMF 8 Ω / MHF 8 Ω
Power Handling (Peak) LMF 1.800 W / MHF 440 W
Rigging VH e-motion rigging™ system
Connections 2 x SpeakON™ NL8 - 1 x NL4 Sub/Bass out
Enclosure Construction 18 / 24 mm Birch-ply
Height 585 / Width 775 / Depth 800 mm
Weight 65 Kg
Supported Processing : Armonia Pro Audio Suite
VH e-motion MH210H
Frequency Range 220 Hz - 21 kHz
Nominal Directivity H x V : 60° x 40° - Conical
Maximum Peak SPL (LMF / MF - HF) 144 / 143 dB
Components LMF 2 x 10in. Neodymium/ MF - HF 1 x 2in. exit Neodymium coaxial compression Driver
Nominal Impedance LMF 4 Ω / (MF - HF) 16 Ω
Power Handling (Peak) LMF 3.200 W / MHF 1000 W
Rigging VH e-motion rigging™ system
Connections 2 x SpeakON™ NL8 - 1 x NL4 Sub/Bass out
Enclosure Construction 18 / 24 mm Birch-ply
Height 840 / Width 815 / Depth 830 mm
Weight 80 Kg
Supported Processing : Armonia Pro Audio Suite

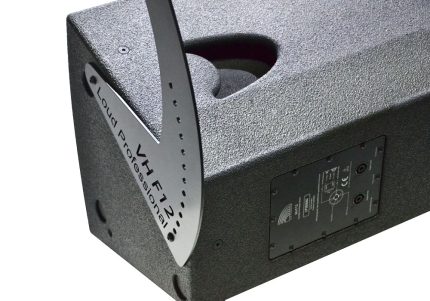

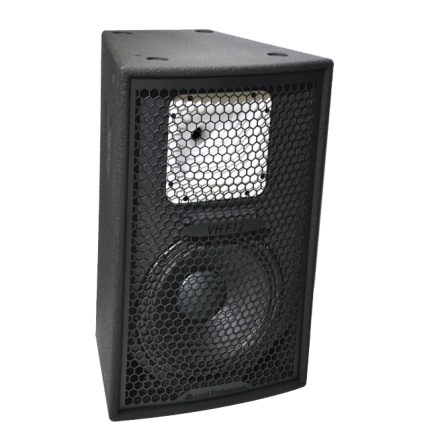

VH F12
Frequency Range 60 Hz - 20 kHz (50 Hz @ -6dB)
Nominal Directivity H x V : 60° x 40° - Rotable
Maximum Peak SPL 133 dB
Components LMF 1 x 12in. Neodimyum / MHF 1 x 1in. exit Neodimyum compression driver
Nominal Impedance 8 Ω
Power Handling (Peak) 2.600 W
Connections 2 x SpeakON™ NL4
Enclosure Construction 18 / 24 mm Birch-ply
Height 680 / Width 430 / Depth 380 mm
Weight 24 Kg
Supported Processing : Armonia Pro Audio Suite

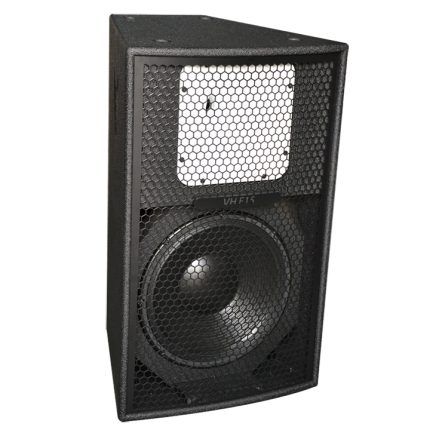

VH F15
Frequency Range 50 Hz - 20 kHz
Nominal Directivity H x V : 60° x 40° - Rotable
Maximum Peak SPL (LMF / MHF) 136 / 136 dB
Components LMF 1 x 15in. Ferrite cone driver / MHF 1 x 2in. exit Neodymium compression driver
Nominal Impedance LMF 8 Ω / MHF 8 Ω
Power Handling (Peak) LMF 6.000 W / MHF 440 W
Connections 2 x SpeakON™ NL4
Enclosure Construction 18 / 24 mm Birch-ply
Height 837 / Width 516 / Depth 526 mm
Weight 41 Kg
Supported Processing : Armonia Pro Audio Suite
VH F15EV
Frequency Range 65 Hz - 20 kHz
Nominal Directivity H x V : 60° x 40°
Maximum Peak SPL (LF / MF / HF) 139 / 141 / 136 dB
Components LF 1 x 15in. Ferrite / MF 2 x 6.5in. Neodymium / HF 1 x 2in. exit Neodymium compression driver
Nominal Impedance LF 8 Ω / MF 8 Ω / HF 8 Ω
Power Handling (Peak) LF 6.000 W / MF 1.440 W / HF 440 W
Rigging VH e-motion rigging™ system (optional touring version)
Connections 2 x SpeakON™ NL8 - 1 x NL4 Sub/Bass out
Enclosure Construction 18 / 24 mm Birch-ply
Height 918 / Width 661 / Depth 639 mm
Weight 67 Kg
Supported Processing : Armonia Pro Audio Suite
VH Infra218R
Frequency Range 25 Hz - 150 Hz
Nominal Directivity : Omnidirectional
Maximum Peak SPL LF 147 dB
Components LF 2 x 18in. Ferrite cone driver
Nominal Impedance LF 2 x 8 Ω
Power Handling (Peak) LF 2 x 6.000 W
Connection 2 x SpeakoON™ NL4
Enclosure Constructions 18 / 24 mm Ply Birch
Height 1160 / Width 815 / Depth 830 mm
Weight 108 Kg
Supported Processing : Armonia Pro Audio Suite
VH Layer112H
Frequency Range 65 Hz - 21 kHz
Nominal Directivity H x V : 90° x 10°
Maximum Peak SPL (LF / MF / HF) 138 / 141 / 148 dB
Components LF 1 x 12in. Neodymium / MF 2 x 6.5in. Neodymium (Additional)/ HF 3 x 4in. Neodymium planar wave driver
Nominal Impedance LF 8 Ω / MF 8 Ω (Optional) / HF 5.3 Ω
Power Handling (Peak) LF 2.600 W / MF 1.440 W (Additional) / HF 960 W
Rigging Layer™ rigging system
Connections 2 x SpeakON™ NL8 - 1 x NL4 Sub/Bass out - 1 x NL4 EMD out
Enclosure Construction 18 / 24 mm Birch-ply
Height 450 / Width 545 / Depth 510 mm
Weight 45 + 8 (Additional EMD) Kg
Supported Processing : Armonia Pro Audio Suite
VH Layer112H+EMD
Frequency Range 65 Hz - 21 kHz
Nominal Directivity H x V : 90° x 10°
Maximum Peak SPL (LF / MF / HF) 138 / 141 / 148 dB
Components LF 1 x 12in. Neodymium / MF 2 x 6.5in. Neodymium / HF 3 x 4in. Neodymium planar wave driver
Nominal Impedance LF 8 Ω / MF 8 Ω (Optional) / HF 5.3 Ω
Power Handling (Peak) LF 2.600 W / MF 1.440 W / HF 960 W
Rigging Layer™ rigging system
Connections 2 x SpeakON™ NL8 - 1 x NL4 Sub/Bass out - 1 x NL4 EMD out
Enclosure Construction 18 / 24 mm Birch-ply
Height 450 / Width 545 / Depth 510 mm
Weight 45 + 8 (EMD) Kg
Supported Processing : Armonia Pro Audio Suite
VH Layer212H
Frequency Range 65 Hz - 21 kHz
Nominal Directivity H x V : 90° x 10°
Maximum Peak SPL (LF / MF / HF) 145 / 141 / 148 dB
Components LF 2 x 12in. Neodymium / MF 2 x 6.5in. Neodymium / HF 3 x 4in. Neodymium planar wave driver
Nominal Impedance LF 2 x 8 Ω / MF 8 Ω / HF 5.3 Ω
Power Handling (Peak) LF 2 x 2.600 W / MF 1.440 W / HF 960 W
Rigging Layer™ rigging system
Connections 2x SpeakON™ NL8
Enclosure Construction 18 / 24 mm Birch-ply
Height 450 / Width 1250 / Depth 625 mm
Weight 90 Kg
Supported Processing : Armonia Pro Audio Suite
VH Micro Full Range
Frequency Range 120 Hz - 20 kHz
Nominal Directivity H x V : 60° x 60° - Conical
Maximum Peak SPL 131 dB
Components LMF 1 x 6.5in. Neodymium / HF 1 x 1in. exit Neodymium compression driver
Nominal Impedance 16 Ω
Power Handling (Peak) 800 W
Connections 2 x SpeakON™ NL4
Enclosure Construction 18 / 24 mm Birch-ply
Height 340 / Width 225 / Depth 195 mm
Weight 8 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus
VH Micro Sub112DR
Frequency Range 50 Hz - 150 Hz
Nominal Directivity : Omnidirectional or cardioid (paired)
Maximum Peak SPL LF 133 dB
Components LF 1 x 12in. Ferrite cone driver
Nominal Impedance LF 8 Ω
Power Handling (Peak) LF 3.200 W
Connections 2 x SpeakON™ NL4
Enclosure Construction 18 / 24 mm Birch-ply
Height 405 / Width 700 / Depth 465 mm
Weight 32.5 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus

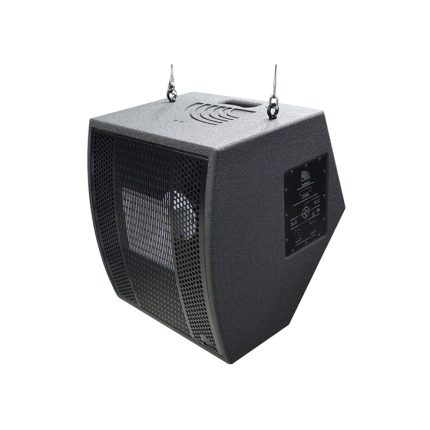

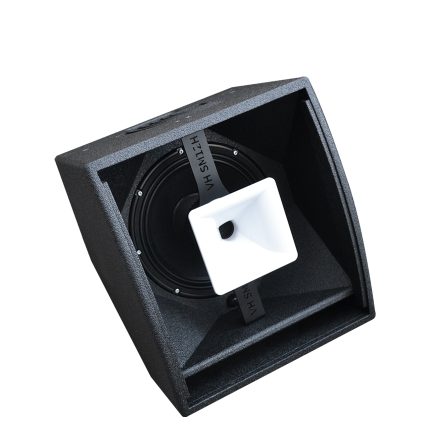

VH SM12H Monitor
Frequency Range 65 Hz - 20 kHz
Nominal Directivity H x V : 20° x 90° - Rotable
Maximum Peak SPL (LMF / MHF) 136 / 136 dB
Components LMF 1 x 12in. Neodymium / MHF 1 x 1.4in. exit Neodymium compression driver
Nominal Impedance LMF 8 Ω / MHF 16 Ω
Power Handling (Peak) LF 2.600 W / HF 440 W
Connections 2 x SpeakON™ NL4 - 2 x SpeakON™ NL4 Paralleled - Rear side
Enclosure Construction 18 / 24 mm Birch-ply
Height 490 / Width 450 / Depth 380 mm
Weight 23.5 Kg
Supported Processing : Armonia Pro Audio Suite
VH SM15 Monitor
Frequency Range 50 Hz - 20 kHz
Nominal Directivity H x V : 60° x 60° Conical
Maximum Peak SPL (LMF / MHF) 134 / 136 dB
Components LMF 1 x 15in. Neodymium / MHF 1 x 1.4in. exit Neodymium compression driver
Nominal Impedance LMF 8 Ω / MHF 8 Ω
Power Handling (Peak) LF 1.800 W / HF 440 W
Connections 2 x SpeakON™ NL4 - 2 x SpeakON™ NL4 Parallel Rear
Enclosure Construction 18 / 24 mm Birch-ply
Height 406 / Width 598 / Depth 593 mm
Weight 28 Kg
Supported Processing : Armonia Pro Audio Suite

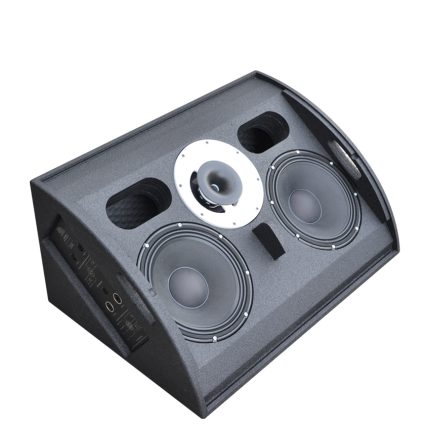

VH SM212 Monitor
Frequency Range 50 Hz - 20 kHz
Nominal Directivity H x V : 60° x 60° - Conical
Maximum Peak SPL (LMF / MHF) 138 / 133 dB
Components LF 2 x 12in. Neodymium / MF 1 x 6.5in. Neodymium / HF 1 x 1in. exit Neodymium
compression Driver
Nominal Impedance LMF 4 Ω / (MF - HF) 16 Ω
Power Handling (Peak) LMF 5.200 W / MHF 800 W
Connections 2 x SpeakON™ NL4 - 2 x SpeakON™ NL4 Parallel Rear
Enclosure Construction 18 / 24 mm Birch-ply
Height 406 / Width 870 / Depth 593 mm
Weight 42 Kg
Supported Processing : Armonia Pro Audio Suite
VH Sub118R
Frequency Range 35 Hz - 150 Hz
Nominal Directivity : Omnidirectional or cardioid (paired)
Maximum Peak SPL LF 138 dB
Components LF 1 x 18in. Ferrite cone driver
Nominal Impedance LF 8 Ω
Power Handling (Peak) 6.000 W
Connections 2 x SpeakON™ NL4
Enclosure Construction 18 / 24 mm Birch-ply
Height 609 / Width 575 / Depth 730 mm
Weight 50 Kg
Supported Processing : Armonia Pro Audio Suite
VH Sub121H
Frequency Range 35 Hz - 150 Hz
Nominal Directivity : Omnidirectional
Maximum Peak SPL LF 145 dB
Components LF 1 x 21in. Ferrite cone driver
Nominal Impedance LF 8 Ω
Power Handling (Peak) 8.000 W
Connection 2 x SpeakON™ NL4
Enclosure Construction 18 / 24 mm Ply Birch
Height 1215 / Width 685 / Depth 900 mm
Weight 118 Kg
Supported Processing : Armonia Pro Audio Suite
VH Sub218H
Frequency Range 40 Hz - 150 Hz
Nominal Directivity : Omnidirectional
Maximum Peak SPL LF 152 dB
Components LF 2 x 18in. Ferrite cone driver
Nominal Impedance LF 2 x 8 Ω
Power Handling (Peak) LF 2 x 6.000 W
Connections 2 x SpeakON™ NL4
Enclosure Construction 18 / 24 mm Ply Birch
Height 1250 / Width 960 / Depth 1160 mm
Weight 125 Kg
Supported Processing : Armonia Pro Audio Suite
VH Sub218R
Frequency Range 32 Hz - 150 Hz
Nominal Directivity : Omnidirectional or cardioid (paired)
Maximum Peak SPL LF 144 dB
Components LF 2 x 18in. Ferrite cone driver
Nominal Impedance LF 2 x 8 Ω
Power Handling (Peak) LF 2 x 6.000 W
Connection 2 x SpeakON™ NL4
Enclosure Constructions 18 / 24 mm Ply Birch
Height 1182,5 / Width 575 / Depth 730 mm
Weight 97,5 Kg
Supported Processing : Armonia Pro Audio Suite
