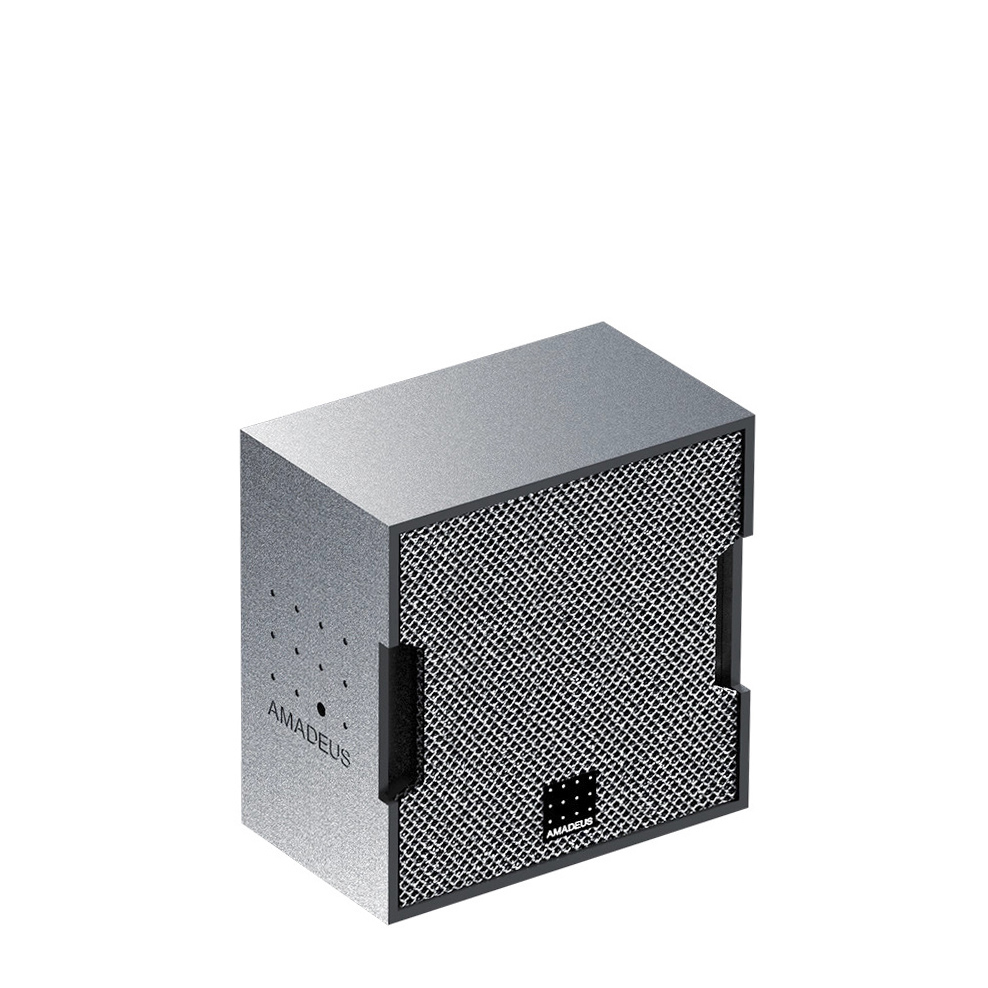

Amadeus C 3

ACOUSTICAL SPECIFICATIONS

Amplitude linearity (± 3 dB) 95 Hz – 20000 Hz
Operating frequency range (-6 dB) 84 Hz – 20000 Hz
Cut-off frequencies (-10 dB) 74 Hz – 20000 Hz
Number of ways 2
Sensitivity 82 dB
Maximum SPL 100 dB
Horizontal coverage 100°
Vertical coverage 100°

TECHNICAL SPECIFICATIONS

Nominal impedance 8 Ω
AES power handling 30 W
Program power handling 60 W
Peak power handling 120 W
Transducer (LF) 1 x 3.5″
Transducer (HF) 1 x 0.625″
Enclosure type Sealed
Crossover type Passive

CONNECTOR AND BUTTON SPECIFICATIONS

Input connectors (Analog) 1 x speakON NL4MP or 1 x Binding Post or 1 x Cable Gland

PHYSICAL SPECIFICATIONS

Height 152 mm
Width 152 mm
Depth 108 mm
Weight 2 kg
Rigging 2 x M5 threaded inserts for optional U-Bracket
Standard colour codes for cabinet 9005/9010/1013/7040/7030/5011
Standard colour codes for fabric 9005/9006/9010/1035/1036

PROPRIETARY ACCESSORIES

Amadeus LYRE C 3 U-Bracket for C 3
Atelier 33 FA2C3 Flight Case for two Amadeus C 3
Atelier 33 FA4C3 Flight Case for four Amadeus C 3
