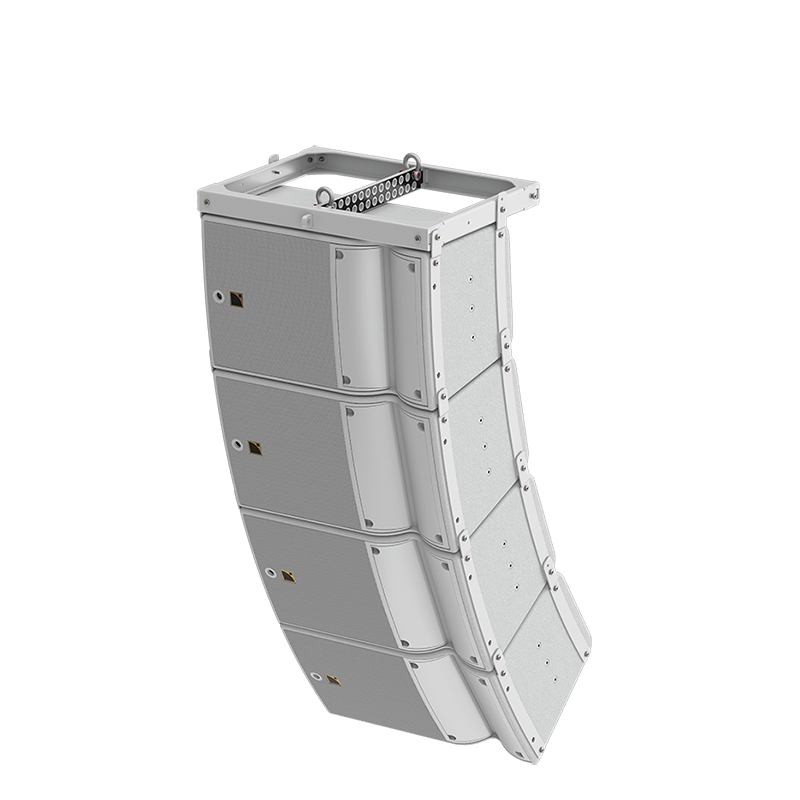

L-Acoustics A10i Focus
Click to enlarge
L-Acoustics A10i Wide
L-Acoustics A10i Wide
Back to products
L-Acoustics A10 Wide
L-Acoustics A10 Wide
L-Acoustics

L-Acoustics A10i Focus

Performance and discretion
2-way passive, 10″
CONSTANT CURVATURE LINE SOURCE
L-VENTS
DOSC
PANFLEX
Max SPL 140 dB
Bandwidth 66 Hz – 20 KHz
Transducers LF : 1 x 10″ + HF : 1 x 2.5″
Weight 19 kg
Directivity H: 70° / 90° / 110° – V: 10°

Thương hiệuL-Acoustics
Âm thanhfull-range, line-array, passive
So sánh
Thêm vào yêu thích
Danh mục: Thẻ:
Mô tả

Electroacoustic specs

2-way passive constant curvature WST® 10° enclosure (installation version)
amplified by LA2Xi / LA4X / LA8 / LA12X

Usable bandwidth (-10 dB) 66 Hz – 20 kHz ([A10])
Maximum SPL1 140 dB ([A10]) with LA2Xi (bridge mode) / LA4X / LA8 / LA12X
136 dB ([A10]) with LA2Xi
Nominal directivity (-6 dB) Enclosure: 10°
L-Fins: 70° / 110° symmetric or 90° asymmetric
Transducers LF: 1 × 10″ cone driver
HF: 1 × 2.5″ diaphragm compression driver, neodymium
Acoustical load LF: bass-reflex, L-Vents
HF: DOSC waveguide, Panflex
Nominal impedance 8 Ω

1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).

Physical specs

Connectors 1 × 4-point terminal block with push-in connection
1 × connector sealing plate with cable gland
Rigging and handling external rigging kits
M6 inserts for rigging plates
M8 inserts for A-U10i
4 M6 inserts for rigging accessory
1 DIN580-compatible M8 threaded insert
Weight (net) 19 kg / 42 lb
Cabinet premium grade Baltic beech and birch plywood
Front coated steel grill
acoustically neutral 3D fabric
Finish dark grey brown Pantone 426 C
pure white RAL 9010
custom RAL code on special order
IP IP55

Dimensions


A10i Focus schema
