GALAXY

GALAXY

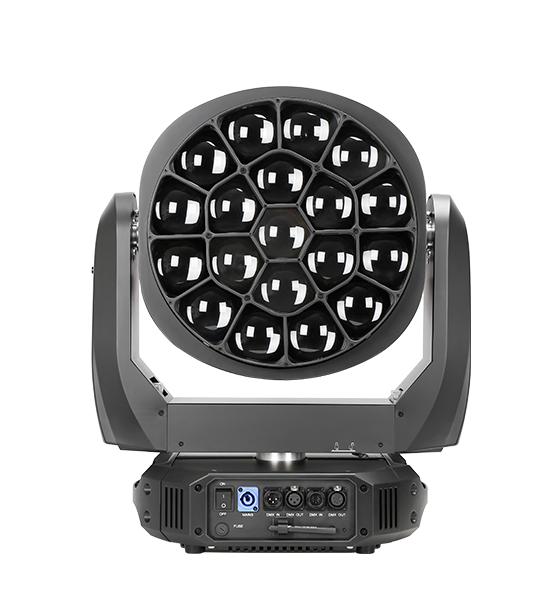

GALAXY is an extremely bright LED color wash moving head luminaire featuring 19 pcs 60W OSRAM (4 in 1 RGBW) LEDs. As a washlight, the 3.3°~60° zoom, even beam and fantastic color range create a true workhorse fixture. For the next level, features include variable color temperature (2700K~10000K), pixel and ring control, advanced color macro.

Nguồn sáng	LED
Thương hiệu	PR Lighting

Nguồn sáng

LED

Thương hiệu

PR Lighting

Danh mục: X LED Thẻ: GALAXY

■ Input Voltages
100-240V AC, 50/60Hz

■ Power Consumption
1400W@230V

■ Light Source
OSRAM 19x60W LEDs(RGBW, 4 in 1)
2700K~10000K, 50,000 hrs

■ Colors
Linear RGBW, color mixing with unlimited colors, macros

■ Strobe
Electronic strobe, 0-25 F.P.S (pulse strobe macros)

■ Dimmer
0-100% linearly adjustable

■ Effect
Rainbow, Wash, Beam, Profile, Effect Modes (Kaleidoscope, Swirl), multiple macros

■ Head Movement
Pan 0-540 degrees, Tilt 0-210 degrees
with auto-positioning, Bi-directional and continual rotation for the front lens panel

■ Light Angle
Beam angle(1/2 peak) Θ1/2: Linear Zoom 3.3°~60°

■ Control
International Standard DMX512 signal, 5 pin DMX512 interfaces
26 channels in short mode, 30 channels in standard mode, and 102 channels in extended mode. Master/slave mode
Stand-alone mode,
Preset mode, Self-test mode, static Scene mode

■ Other Functions
Pixel Control

■ Bi-directional and continual rotation of the front lens panel
Color touch screen and its brightness adjustable
Wireless Control (Optional)
Pan and Tilt Speed adjustable and Pan and Tilt can be inverted
Firmware upgraded via DMX interface and XLR cable,
Overtemperature protection
Total hours, DMX channel number, software versions are displayed and display inversion

■ Physical
Housing: High temperature engineering plastic, IP20
Maximum ambient temperature: 40 °C

■ Weight
Net weight: 30kg

■ Packaging
Standard: carton 715x615x495(mm)
Optional: flight case 980x580x730(mm), 2 in 1

■ Accessories
G clamp, 2 pcs
Safety cord, 1 pc
User Manual, 1 Pc
