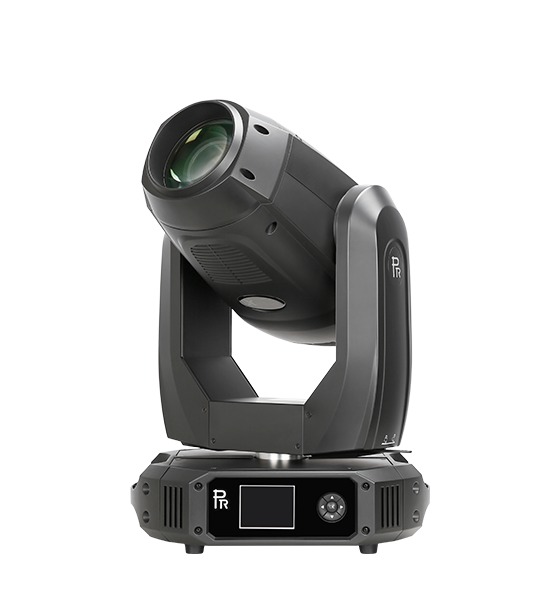

XR 380 BWS

Input Voltages
100-240V AC, 50/60Hz

Power Consumption
540W@220V

Light Source
PHILIPS MSD Silver 380W(7,800K, 1,500 hrs)

Strobe
Double shutter blades, 0.3~25 F.P.S

Dimmer
0-100% linear adjustment

Colors
CMY linear color mixing with macros
1 Color wheel: 13 dichroic color filters(with CTO) plus open
Rainbow effect with bi-directional and variable speeds
Stepping/linear color changing

Gobos
1 Fixed gobo wheel: 10 gobos+open+ animation effect
Bi-directionally rotatable, and shakable effect at variable
speeds, 2 channels to control gobos and shift between
animation effects
1 Rotating gobo wheel: 9 interchangeable gobos plus open
Bi-directionally rotatable, and shakable at variable speeds

Prism
Two prisms(standard: 8-facet and 16-facet prisms)
Optional: 3-facet prism and gradient prisms
Bi-directional rotating at variable speeds
Frost
One frost filter

Independent Diffuser
One independent diffuser, optional even beam mode
Focus
DMX linear focus

Zoom
DMX linear zoom

Head Movement
Pan 540°, tilt 270° with auto position correction

Light Angle
Beam mode: 2.3°~10°
Spot mode: 2.3°~40°
Wash mode: 10°~60°

Control
International DMX512, 3 pins and 5 pins interface
Short mode 23 channels, standard mode 28 channels,
extended mode 33 channels, self-test mode

Other Functions
Adjustable pan & tilt speed
LCD display screen
Fixture and lamp usage time display
Setup options by chargeable battery inside without power
connection
Modular structure for easy maintenance
DMX512 wireless receiver
DMX512 wireless transmitter(optional)

Physical
Housing: high temperature engineering plastic, IP20
Ambient temperature: maximum 40 °C

Weight
Net weight: 22.2Kg

Packaging
Standard: carton 640x510x530(mm)
Optional: flight case 860x550x750(mm)

Accessories
G clamp, 2 pcs
5 pins XLR connector, 1 set
Safety cord, 1 pc
Power cord, 1 pc
Optional: Ω clamp, 2 pcs
