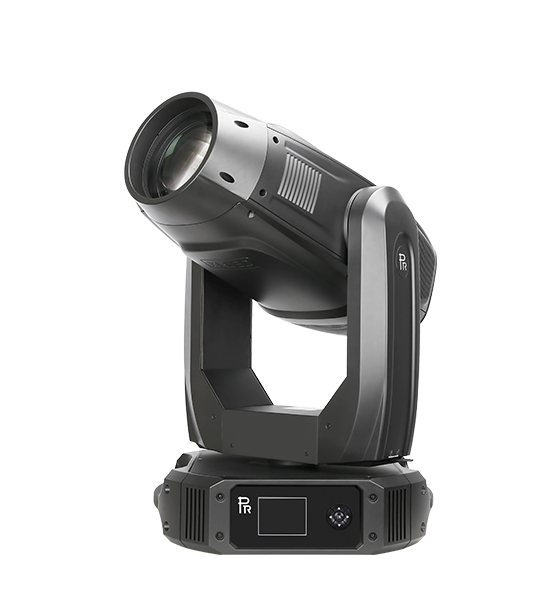

XRLED 1800-W Framing

■ Input Voltages
100-240V AC, 50/60Hz

■ Power Consumption
1050W@220V

■ Light Source
800W white LED(8,000K), 20,000 hrs

■ Strobe
Electronic strobe, 0.3-25 F.P.S

■ Dimmer
0-100% linear adjustment

■ Colors
CMY linear color mixing with macros
1 Color wheel: 6 dichroic colors filters plus open
Half color effect, variable speed rainbow effect
Stepping/linear color changing is optional
Linear color temperature adjustment

■ CTO
0-100% linear CTO system

■ Gobos
1 Rotating gobo wheel: 6 replaceable gobos plus open, glass or metal gobos can be fixed
Bi-directionally rotatable and wheel scrolling at variable speed, indexable
Shakable at variable speeds

■ Prism
One 4-facet prism, bi-directionally rotatable at variable speed, indexable

■ Frost
One linear frost filter

■ Effect
1 Replaceable animation wheel, bi-directionally rotatable at variable speed

■ Framing
4 Sets of framing blades
Endless rotation, graphics at different sizes and shapes, full curtain effect

■ Iris
5-100% linear adjustment with macro

■ Focus
Motorized linear focus

■ Zoom
Motorized linear zoom

■ Head Movement
Pan 540°, tilt 270° with auto position correction
Swap and invert functions of pan and tilt

■ Light Angle
6°~56°

■ Control
International DMX512, 5 pins interface
Short mode 35 channels, standard mode 38 channels and extended mode 54 channels
RDM protocol
Art Net protocol
Master-slave mode, stand-alone mode, self-test mode

■ Other Functions
Adjustable pan & tilt speed
Color touch panel display in English, and its brightness and contrast adjustable
Fixture and lamp usage time display
Built-in analyzer for easy fault finding, error messages
Setup options by chargeable battery inside without power connection
Software version display
Modular structure easy for maintenance

■ Network interface
DMX512 wireless receiver
DMX512 wireless transmitter(optional)

■ Weight
Net weight: 44kg

■ Packaging
Standard: carton 870x660x820(mm)
Optional: flight case 705x500x860(mm)

■ Physical
Housing: composite plastic, IP20
Ambient working temperature: maximum 45°C

■ Accessories
G clamp, 2 pcs
5 pins XLR connector, 1 set
Safety cord, 2 pcs
Power cord, 1 pc
Optional: Ω clamp, 2 pcs
