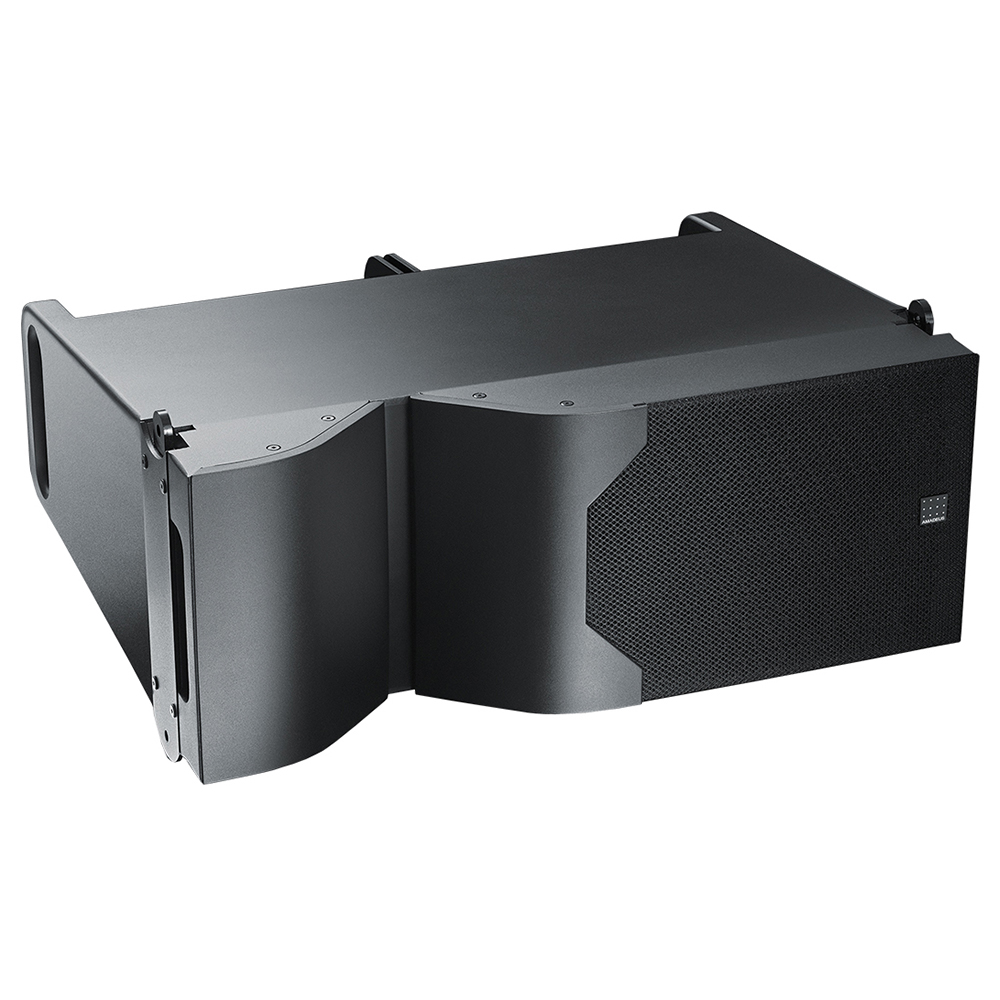

Amadeus DIVA M²

ACOUSTICAL SPECIFICATIONS

Amplitude linearity (± 3 dB) 75 Hz – 20000 Hz
Operating frequency range (-6 dB) 65 Hz – 20000 Hz
Cut-off frequencies (-10 dB) 59 Hz – 20000 Hz
Number of ways 3
Sensitivity LF 97 dB
Sensitivity MHF 112 dB
Maximum SPL LF 130 dB
Maximum SPL MHF 142 dB
Horizontal coverage 100°
Vertical coverage 10°

TECHNICAL SPECIFICATIONS

Nominal impedance LF 16 Ω
Nominal impedance MHF 16 Ω
AES power handling LF 700 W
AES power handling MHF 150 W
Peak power handling LF 1200 W
Peak power handling MHF 1000 W
Transducer (LF) 1 x 8″
Transducer (MF) 1 x 3.5″
Transducer (HF) 1 x 1.75″
Enclosure type Bass-Reflex
Crossover type Active (FIR)

CONNECTOR AND BUTTON SPECIFICATIONS

Input connectors (Analog) 2 x speakON NL4MP

PHYSICAL SPECIFICATIONS

Height 230 mm
Width 589 mm
Depth 459 mm
Weight 21 kg
Handles 4
Rigging Compatible with DIVA BUMP M² and DIVA BUMP M² MINI
Standard colour codes for cabinet 9005/9010/1013/7040/7030/5011
Standard colour codes for fabric 9005/9006/9010/1035/1036

PROPRIETARY ACCESSORIES

Amadeus BUMP M² Bumper for DIVA M² and M² SUB provided with two shackles
Amadeus BUMP M² MINI Bumper for DIVA M² provided with two shackles
Amadeus RACK M² Rack for power amplifiers with compatible rigging system
Amadeus TC3 DIVA M² Touring cart featuring casters with brakes for three DIVA M²
Amadeus TOOLCASE M² System technician toolkit including display, inclinometer sensor and >5mw Class 3R 532nm laser units
Atelier 33 FA3DIVAM² Flight Case featuring casters with brakes for three Amadeus DIVA M²
