Amadeus MAESTRO II
Amadeus ABB 12
Amadeus ABB 18
Amadeus ABB 8
Amadeus Avignon A 470 Focus
Operating frequency range (-6 dB) 58 Hz - 20000 Hz
Number of ways 2
Maximum SPL LF 128 dB/ MHF 130 dB
Horizontal coverage 100°/ Vertical coverage 1°
Nominal impedance LF 4 Ω/ MHF 8 Ω
Peak power handling LF 1200 W + MHF 500 W
Transducer (LF) 4 x 6.5" + (HF) 4 x 8" planar ribbons
Enclosure type Passive Radiators (6 x 8")
Crossover type Active (FIR)
838 x 282 x 470 mm/ Weight 34 kg
Amadeus Avignon A 470 Wide
Operating frequency range (-6 dB) 58 Hz - 20000 Hz
Number of ways 2
Maximum SPL LF 128 dB/ MHF 130 dB
Horizontal coverage 100°/ Vertical coverage 4°
Nominal impedance LF 4 Ω/ MHF 8 Ω
Peak power handling LF 1200 W + MHF 500 W
Transducer (LF) 4 x 6.5" + (HF) 4 x 8" planar ribbons
Enclosure type Passive Radiators (6 x 8")
Crossover type Active (FIR)
838 x 282 x 470 mm/ Weight 34 kg
Amadeus C 10
Amadeus C 12 B
Amadeus C 12 R
Amadeus C 15
3-WAY
Frequency range 49 Hz - 20000 Hz
Sensitivity LF 98 dB/ MHF 113 dB
Maximum SPL LF 134 dB/ MHF 141 dB
Horizontal coverage 90°/ Vertical coverage 60°
Nominal impedance LF 8 Ω/ MHF 8 Ω
Peak power handling LF 4000 W + MHF 1000 W
Transducer (LF) 1 x 15" + (MF) 1 x 3.5" + (HF) 1 x 1.75"
Enclosure type Bass-Reflex
Crossover type Active
446 x 446 x 312 mm / 20 kg
Amadeus C 15 B
Amadeus C 15 R
3-WAY
Frequency range 47 Hz - 20000 Hz
Sensitivity LF 98 dB/ MHF 113 dB
Maximum SPL LF 134 dB/ SPL MHF 141 dB
Horizontal coverage 60°/ Vertical coverage 90°
Nominal impedance LF 8 Ω/ MHF 8 Ω
Peak power handling LF 4000 W/ MHF 1000 W
Transducer (LF) 1 x 15" + (MF) 1 x 3.5" + (HF) 1 x 1.75"
Enclosure type Bass-Reflex
390 x 650 x 556 mm/ 32 kg
Amadeus C 3
Operating frequency range (-6 dB) 84 Hz - 20000 Hz
Number of ways 2
Sensitivity 82 dB
Maximum SPL 100 dB
Horizontal/ Vertical coverage 100°
Nominal impedance 8 Ω
Peak power handling 120 W
Transducer (LF) 1 x 3.5" + (HF) 1 x 0.625"
Enclosure type Sealed
Crossover type Passive
152 x 152 x 108 mm/ Weight 2 kg
Amadeus C 4
Amadeus C 6
Amadeus C 8 R

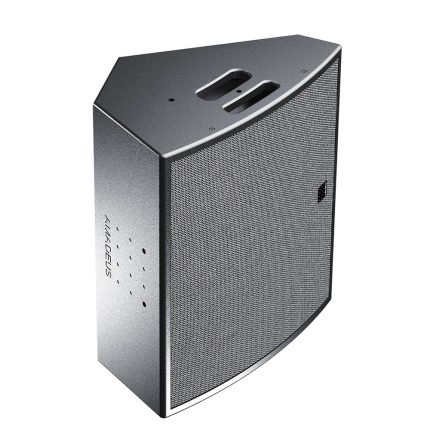

Amadeus CX 15 R
Amadeus DIVA M²
Number of ways 3
Operating frequency range (-6 dB) 65 Hz - 20000 Hz
Sensitivity LF 97 dB/ MHF 112 dB
Maximum SPL LF 130 dB/ MHF 142 dB
Horizontal coverage 100°/ Vertical coverage 10°
Nominal impedance LF 16 Ω/ MHF 16 Ω
Peak power handling LF 1200 W/ MHF 1000 W
Transducer (LF) 1 x 8" + (MF) 1 x 3.5" + (HF) 1 x 1.75"
Enclosure type Bass-Reflex
Crossover type Active (FIR)
230 x 589 x 459 mm/ Weight 21 kg
Amadeus DIVA M² SUB
Amadeus ML 12
Amadeus ML 12 D
Amadeus ML 15
