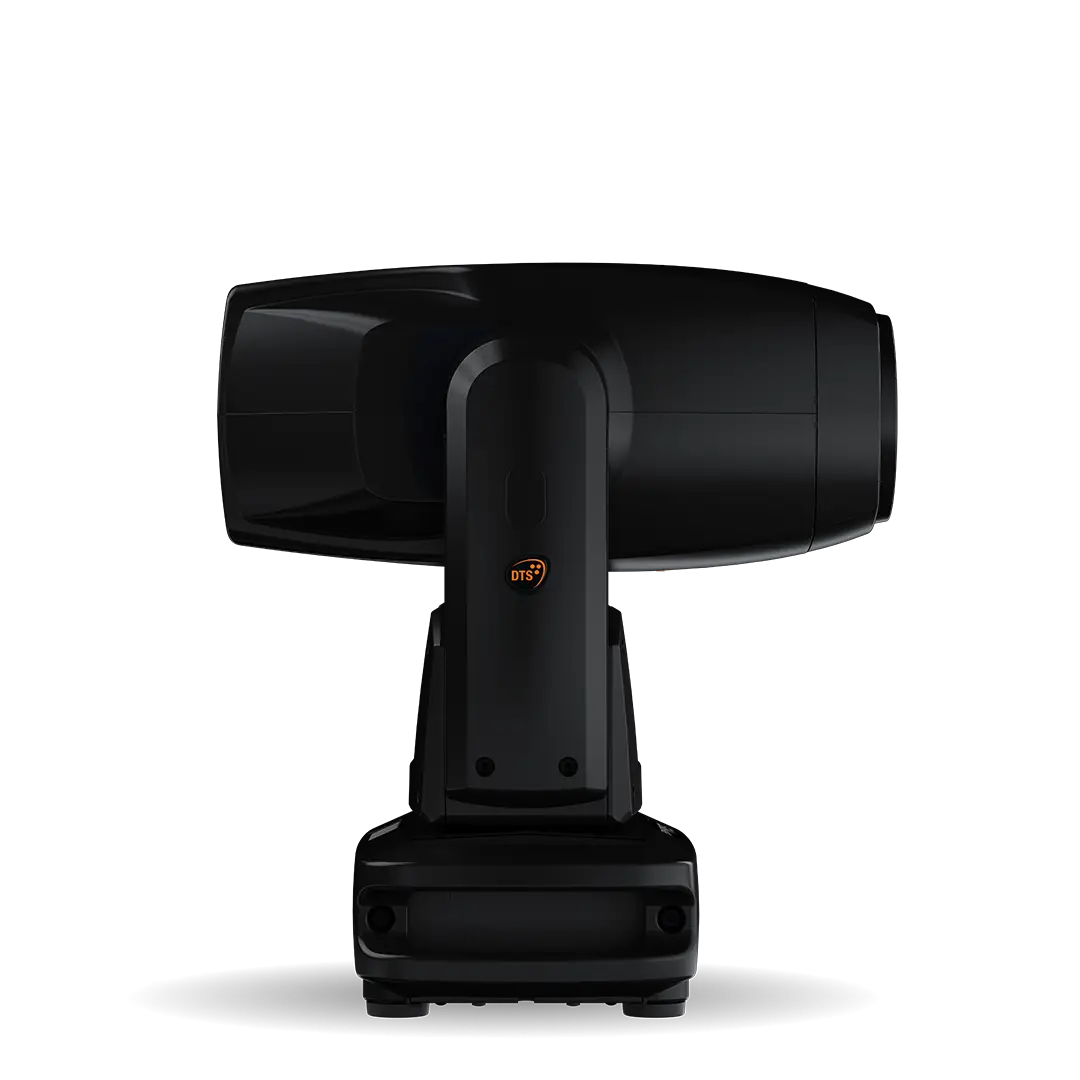

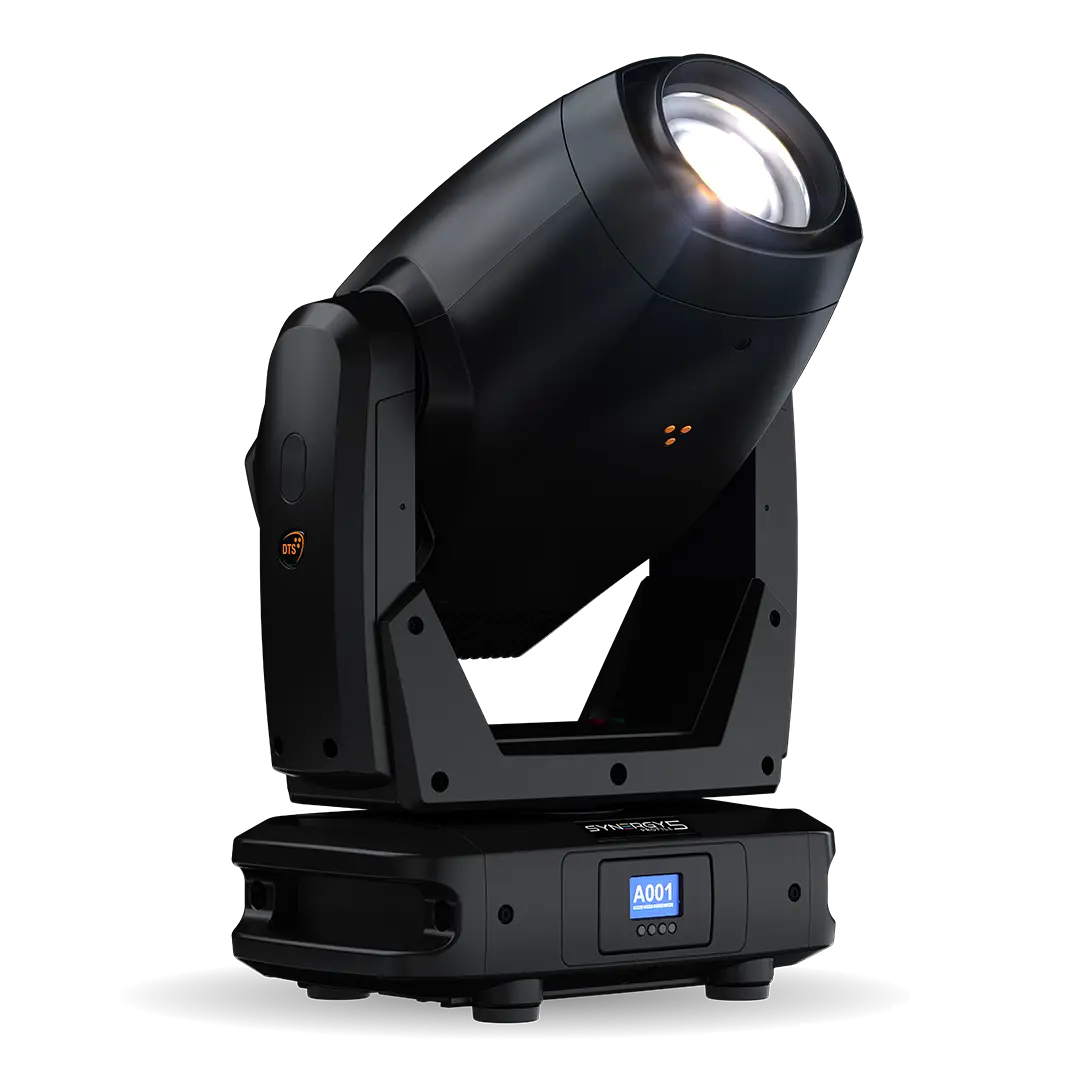

SYNERGY 5 PROFILE

SYNERGY 5 PROFILE

Applications

Theatre and Opera
Precise framing.

TV Studios and Broadcast
Stable 7000 K light, silent operation, ideal for filming and studio sets.

Concerts and Live Tours
Powerful and dynamic, with special effects for high-impact shows.

Corporate Events
Quality lighting for conferences, product launches, and elegant settings.

Museums and Exhibitions
Accurate framing and silent performance for artistic installations.

Theme Parks
Reliable for dynamic lighting effects and long-term installations.

Technical data

OUTPUT
420 W pure white LED source: 7000 K – 16,500 Lumen output
Double CRI (DMX-selectable): CRI >90 or CRI >75
Average LED life: 50000 hours (L70B10)

OPTICAL GROUP
49,900 Lux (4.6°@ 5 m)
4.6° – 43° linear zoom with autofocus
Linear soft frost fi lter
Medium and Heavy frost filters available on demand
Electronic dimmer / shutter / strobe (0.3 to 33.3 flash/sec)

COLOR GENERATION
Linear CMY
Linear CTO (3000 K – 7000 K)
Gel filter emulation
6-color wheel
Two-color generation

DYNAMIC EFFECTS
Dynamove FX Engine
Virtual Animation Wheel
Customizable rotating 6-gobo wheel
Circular 24-facet rotating prism
Linear 6-facet rotating prism

ROTATING FRAMING SYSTEM
4-blade rotating framing system
Real ‘curtain’ effect for each blade
60° rotation for each blade (+/- 30°)
90° full system rotation (+/- 45°)

CONTROL
LCD graphic display + 4 soft-keys; Auto-flip; Key-lock function
Art-Net 4, sACN, RDM/DMX protocols
Standard and Silent operation modes
Noise level at Silent mode: 34dBA @ 1m (normal operation, full power)
Firmware updatable via DTS firmware uploader dongle
Li-Fe backup battery for controlling the display settings even when the unit is not powered

DMX
44 DMX channels (default)
53 DMX channels
16 bit index for insertion and rotation of each blade
16 bit index for blade system rotation

PAN & TILT
Pan: 540°: 2.7 sec.
Tilt: 240°: 1.6 sec.
Tri-phase stepper motor technology
16-bit resolution
Selectable speed ranges
Pan / Tilt lock

POWER SUPPLY
Wide-range 100-277 Vac 50 / 60 Hz
Power consumption: 550 W max
Power Factor: PF >0.90

CONNECTIONS
DMX: XLR 3-pole and 5-pole In / Out panel connectors
Power supply: powerCON TRUE1 panel connector
Art-Net / sACN: etherCON RJ45 panel connector

CIRCUITS PROTECTIONS
Overvoltage and overtemperature circuits protection

TEMPERATURE
Operating: -10° +45° C

PHYSICAL
Finishing: Black
Weight: 35 Kg (77 lbs)
IP rating: IP20

TEST AND CERTIFICATION
CE

ACCESSORIES INCLUDED
Synergy EZ-shell – 560 x 490 x 670 mm – 2 pcs needed in each flightcase (code 0512K146.1)
1 x Soft frost filter – already mounted on the unit (code 02SK0410)
1 x PowerCON TRUE1 female cable connector (code 0520P066)
1 x XLR 5 pins female cable connector (code 0508B147)
1 x XLR 5 pins male cable connector (code 0508B148)
2 x Kit Omega clamp “Fast Lock” (code 02K00549)

ACCESSORIES ON REQUEST
Medium frost filter (code 02SK0428)
Heavy frost filter (code 02SK0430)
Flightcase for 2 units (code 0521C073)
Aliscaf clamp for tube diameter 48-51 mm – max. load. 200 Kg (code 0521A033)
G-QUICK clamp Professional – max. load 100 Kg (code 0521A037)
Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
Safety cable 5 x 600 mm – max capacity load 60 Kg (code 0521A038)
DTS firmware uploader dongle (code 03.LA.206)
