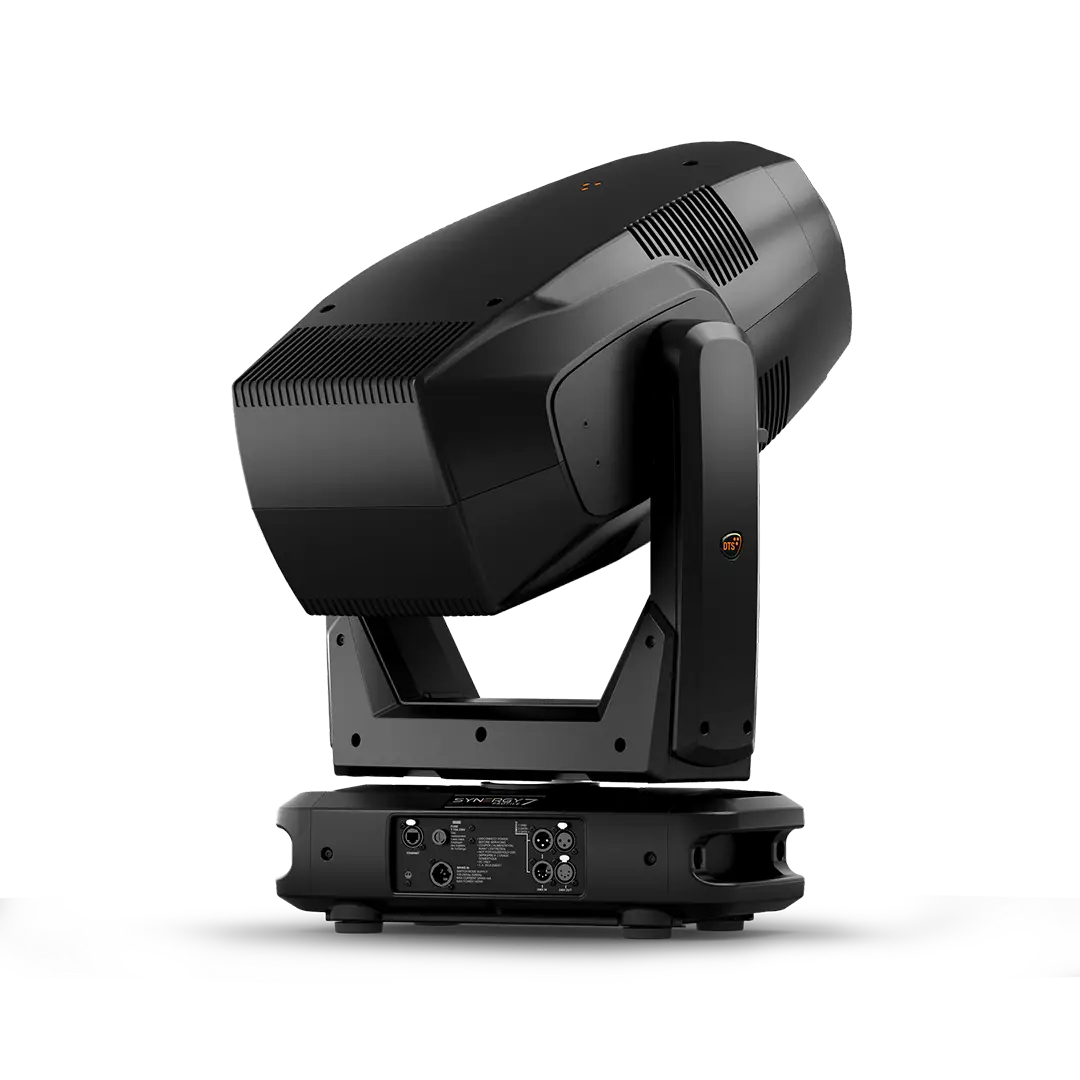

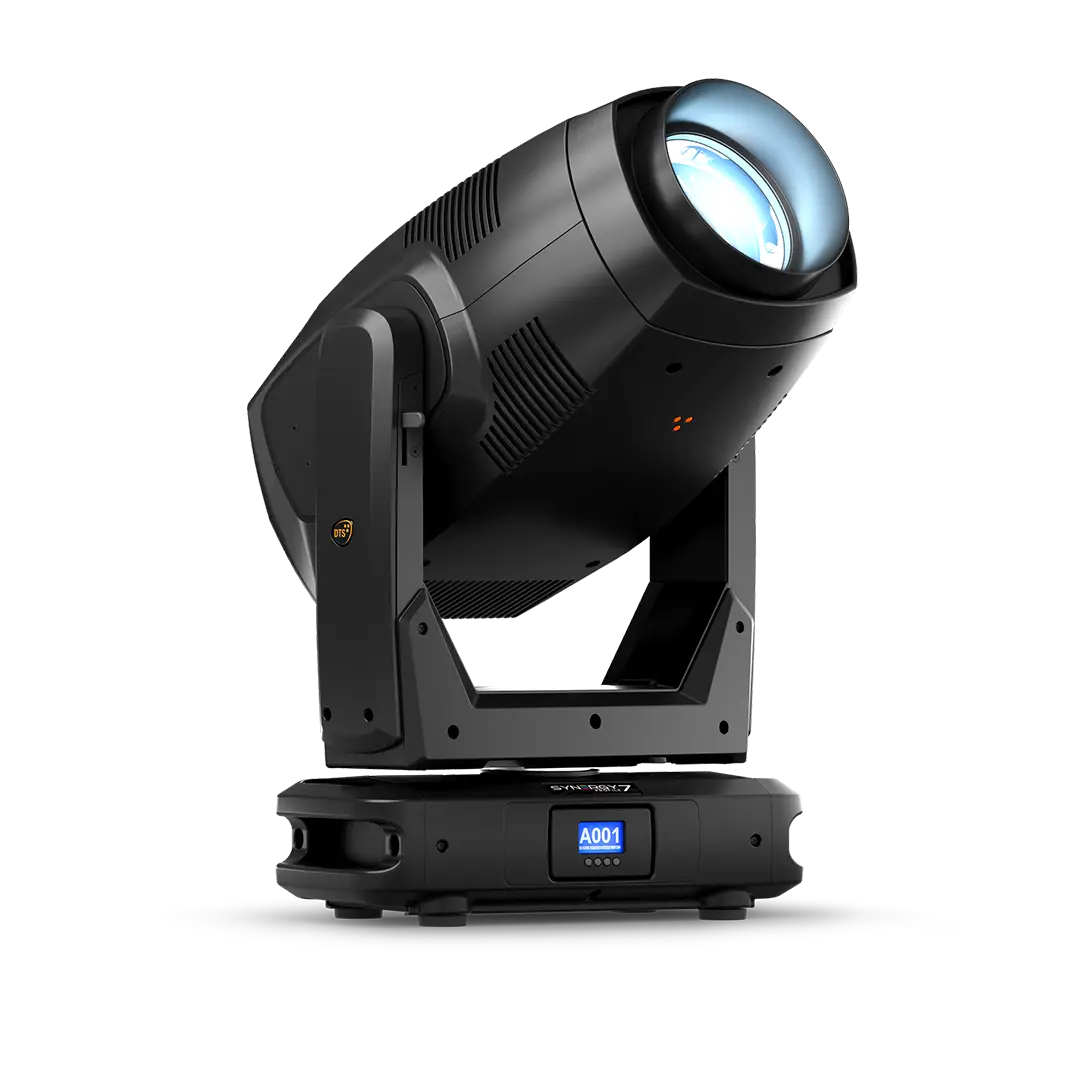

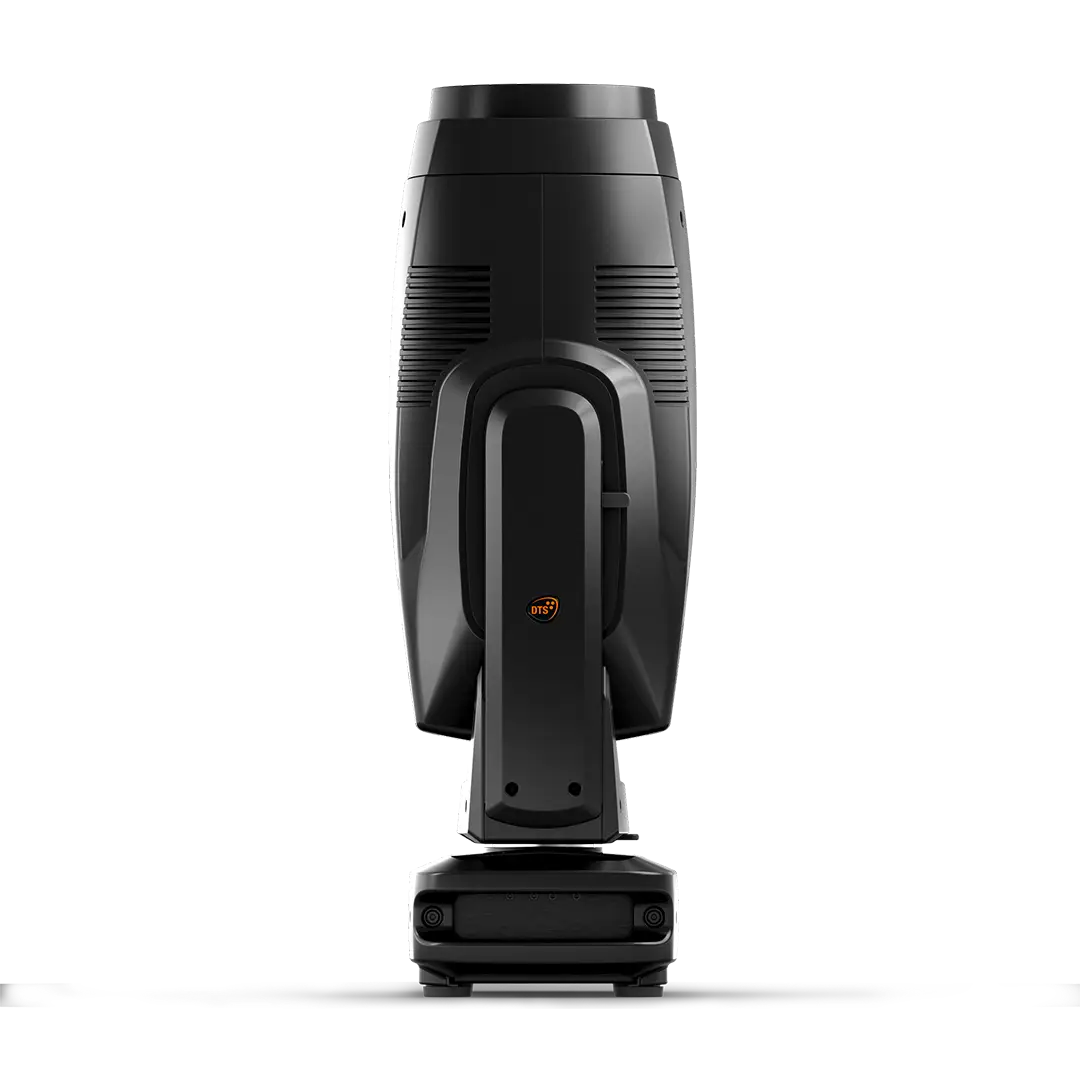

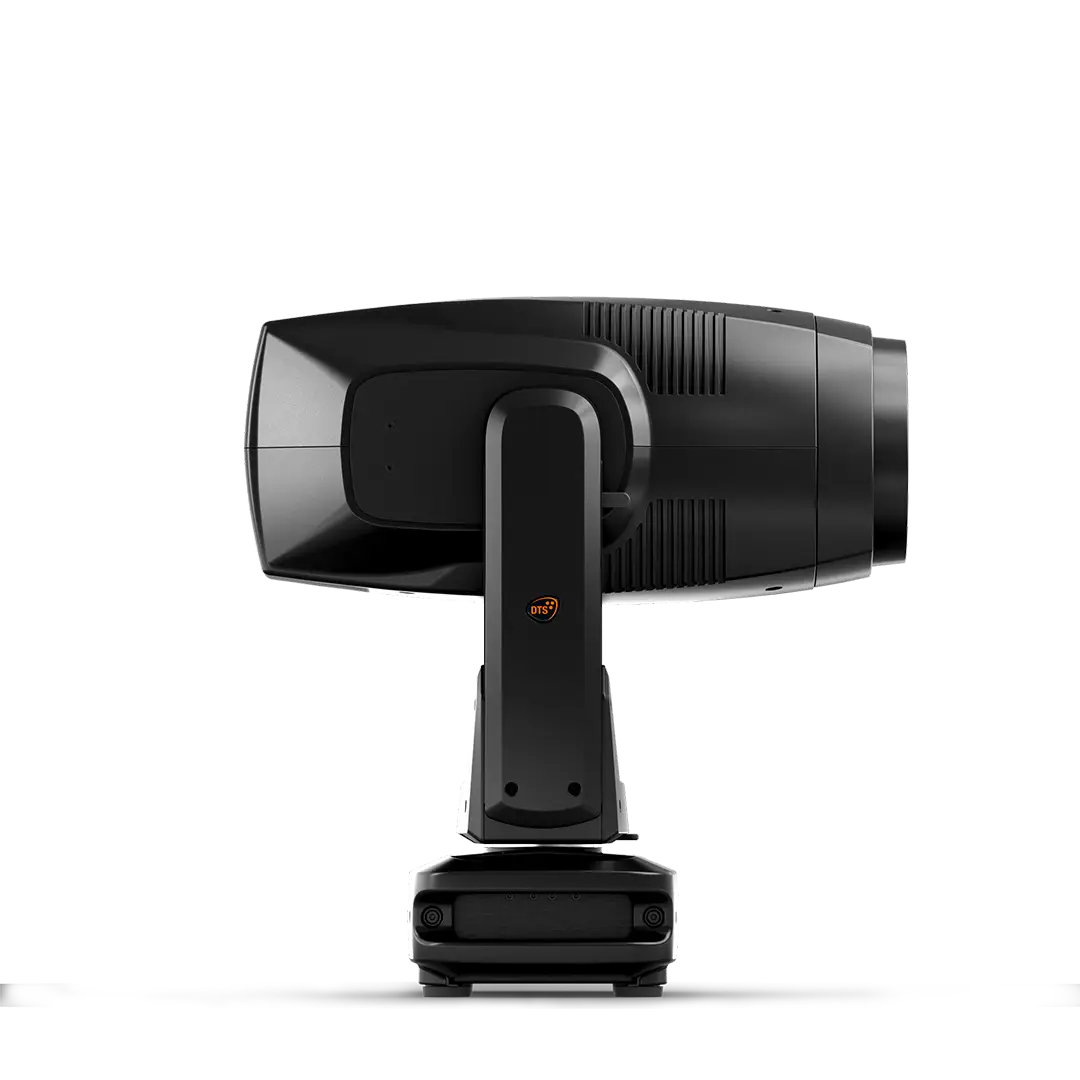

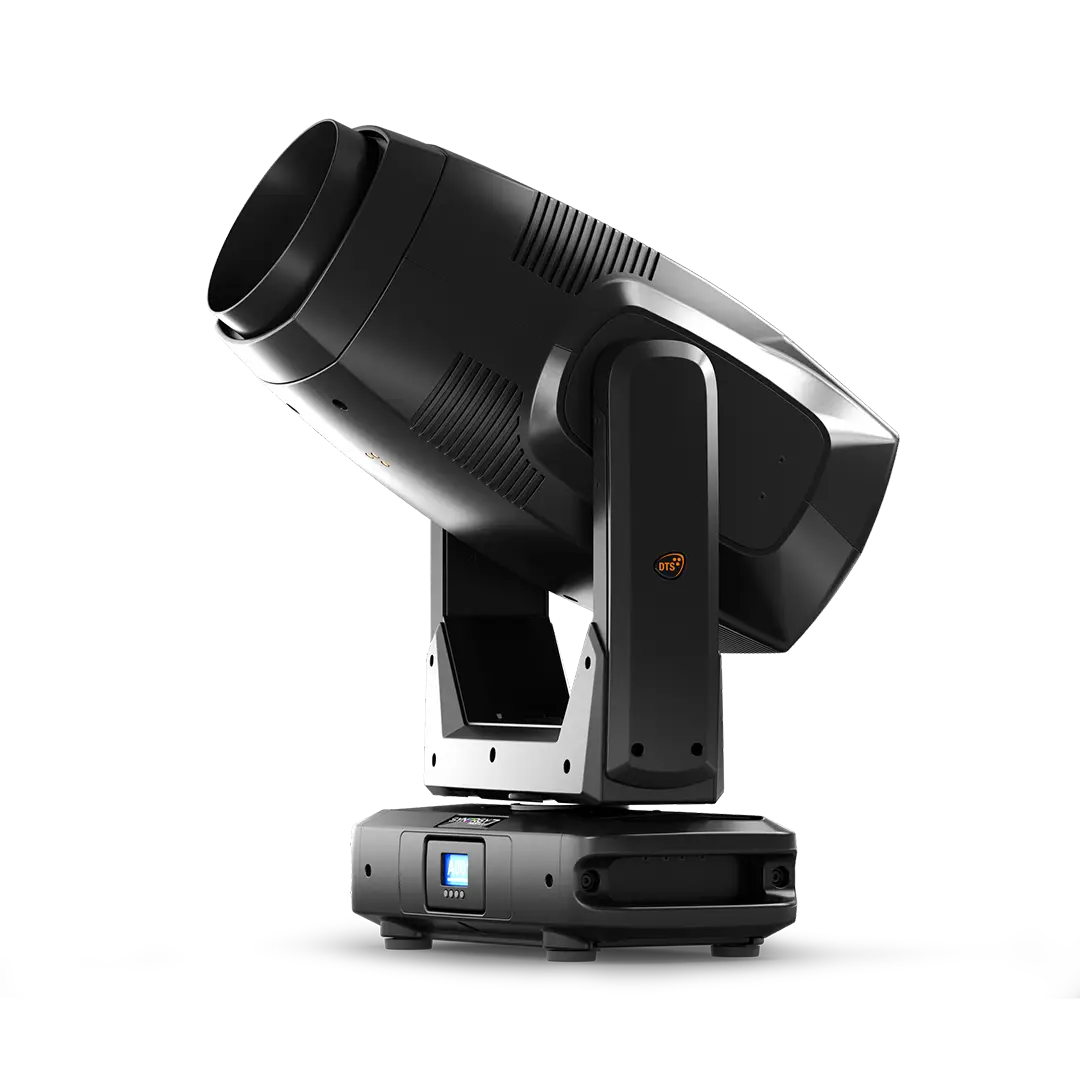

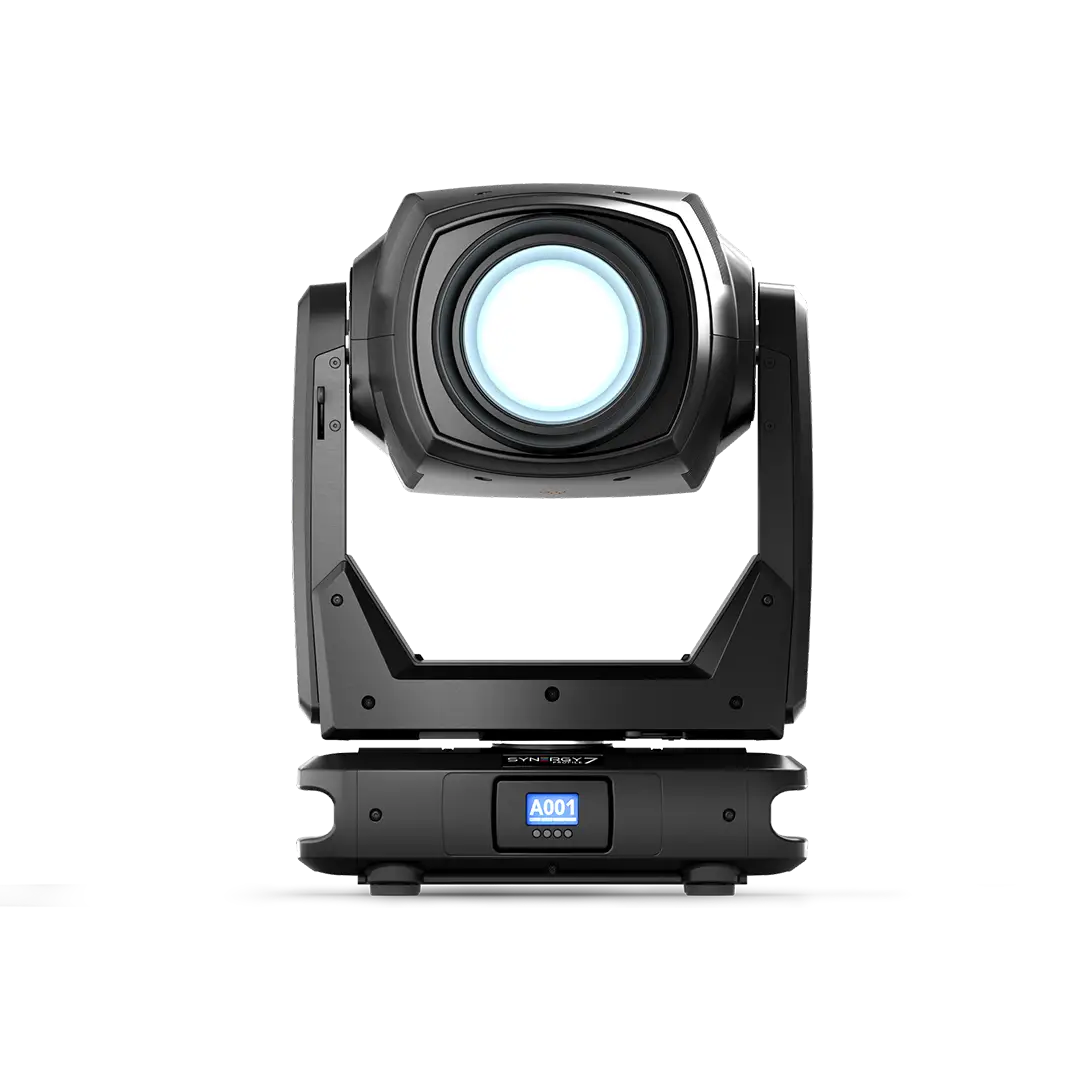

SYNERGY 7 PROFILE

SYNERGY 7 PROFILE

Applications

Theatres and live shows
Precise and silent lighting, ideal for live performances and acoustically sensitive environments.

Concerts and tours
Powerful, versatile, and rich in effects, perfect for large-scale musical events.

TV studios and video production
Accurate color rendering and controllable light, suitable for professional filming and broadcasting.

Museums and exhibitions
Discreet and flexible lighting to enhance artworks and cultural spaces.

Theme parks
Dynamic effects and long lifespan, ideal for immersive shows and scenic attractions.

Trade shows and events
Professional lighting solution for booths, conventions, and corporate showrooms.

Churches and special events
Elegant movements and low noise, perfect for concerts and installations in places of worship.

Technical data

OUTPUT
1050 W pure white LED source (7000 K 55500 Lumens output)
CRI>75 or CRI >90
R9>80
Average LED life: 500000 hours (L70B10)

OPTICAL GROUP
101000 Lux (7°@ 5 m)
7° – 52° linear zoom with autofocus
Linear Frost filter
Electronic dimmer / shutter / strobe (0.3 to 33.3 flash/sec)

COLOR GENERATION
Linear CMY
Linear CTO (3000 K – 7000 K)
Gel filter emulation
4-color wheel (white correction + UV)
5-color wheel (two-color generation)

IRIS
Linear 16-blade Iris (15% ÷ 100%)

DYNAMIC EFFECTS
Dynamove FX Engine (DTS patent)
Virtual Animation Wheel
2 customizable rotating 6-gobo wheel
Circular 24-facet rotating prism
Linear 6-facet rotating prism

ROTATING FRAMING SYSTEM
4-blade rotating framing system
Real ‘curtain’ effect for each blade
60° rotation for each blade (+/- 30°)
90° full system rotation (+/- 45°)

USER INTERFACE
LCD graphic display + 4 soft-keys; Auto-flip; Key-Lock function
Li-Fe backup battery for controlling the display settings even when the unit is not powered

CONTROL
Art-Net 4, sACN, RDM/DMX 512 protocols
52 DMX channels (Default)
61 DMX channels:
16 bit index for insertion and rotation of each blade
16 bit index for blade system rotation
Standard, Silent, Ultra-silent operation modes:
Noise level at Ultra-silent mode 36dBA @ 1m (normal operation, full power)
Firmware updatable via DTS firmware uploader dongle

PAN & TILT
Pan: 540°
Tilt: 260°
Tri-phase stepper motor technology
16-bit resolution
Pan / Tilt lock

POWER SUPPLY
Wide range 100-240 Vac 50-60 Hz
Power consumption: 1400 W max
Power Factor: PF >0.90

CONNECTIONS
DMX: XLR 3-pole and 5-pole In/Out panel connector
Power supply: powerCON TRUE1 panel connector
Art-Net / sACN: etherCON RJ45 panel connector

CIRCUITS PROTECTIONS
Overvoltage and overtemperature circuits protection
Auto-parking: internal collision protection system

TEMPERATURE
Operating: -10° / 45° C
Storage: -20° / 60° C

PHYSICAL
Finishing: Black
Weight: 46.5 Kg (102.5 lbs)
IP rating: IP20

TEST AND CERTIFICATION
CE

ACCESSORIES INCLUDED
1x powerCON TRUE1 female cable connector (code 0520P066)
2 x Kit Omega clamp “Fast Lock” (code 02K00549)

ACCESSORIES ON REQUEST
Flightcase for 1 units (code 0521C080)
Aliscaf clamp for tube diameter 48-51 mm – max. load. 200 Kg (code 0521A033)
G-QUICK clamp Professional – max. load 100 Kg (code 0521A037)
Safety cable 5 x 600 mm – max capacity load 60 Kg (code 0521A038)
DTS firmware uploader dongle (code 03.LA.206)
